Module - TPMS - Baolong - Remove And Replace: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Tesla Model S, 2019 Tesla Model S, 2018 Tesla Model S, 2017 Tesla Model S, and 2016 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle Raise Vehicle - 2 Post Lift .
    WARNING: Do not work on an incorrectly supported vehicle.
    WARNING: To avoid personal injury, use appropriate equipment when performing this operation.
  2. Remove the mid aero shield Panel - Aero Shield - Mid (Remove And Replace) .
  3. Pull down the rear diffuser for access to the TPMS ECU.
  4. Disconnect the electrical harness connector.

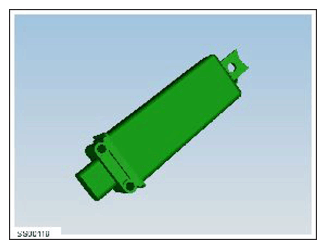

  5. Remove the TPMS ECU.
    G14981962Courtesy of TESLA, INC.
