Module - TPMS - Baolong - Remove And Replace: Installation
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Tesla Model S, 2019 Tesla Model S, 2018 Tesla Model S, 2017 Tesla Model S, and 2016 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
Installation procedure is the reverse of removal, except for the following:

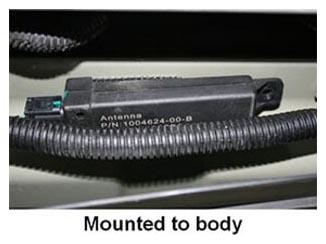

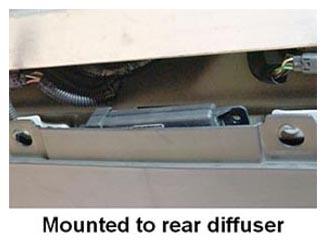

- Attach the new TPMS ECU to the top of the rear diffuser.NOTE: Some vehicles had the TPMS ECU attached to the body. If the TPMS ECU was attached to the body, continue this procedure to install the new ECU on the diffuser. If the TPMS ECU was attached to the diffuser, skip to step 2.
- Clean the top surface of the ECU with alcohol.

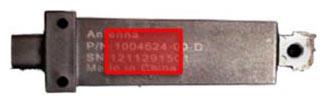

- Cut a new pad of dual lock material that is the same size as the original. Place it on the top of the ECU over the part number, leaving the part revision visible.
- Clean the leading edge of the diffuser panel that faces up. Install a new pad of dual lock material that is the same size as the original, as close as possible to the edge of the diffuser panel.

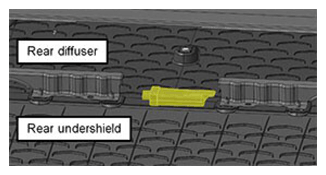

- Attach the TPMS ECU as far forward as possible on the rear diffuser panel.
- Reinstall the latest vehicle firmware, or update the firmware if not the latest. See Firmware Reinstall - Touchscreen or Firmware Update .
- Perform the TPMS sensor ID learn procedure, refer to TPMS Sensor - ID Learn Procedure - Baolong .
- Set the proper TPMS thresholds, refer to TPMS - Set Thresholds .
- Perform a road test.
