Sensor - TPMS - Remove And Replace: Install

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use an IPA wipe to thoroughly clean the inside and outside of the TPMS sensor mounting hole.

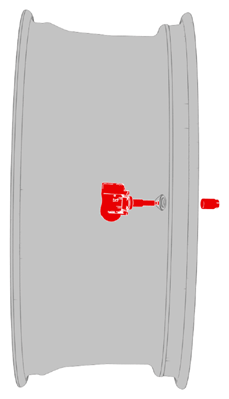

  2. Install the TPMS sensor so that it fits closely to the wheel.
    G14843627Courtesy of TESLA, INC.
  3. Install the nut that secures the TPMS sensor to the wheel.

    8 N.m (5.9 ft-lbs)

  4. Release the upper bead roller, and allow the bead to seat against the wheel.
  5. Inflate the tire to seat the bead.
  6. Install the valve stem core, and then remove the wheel from the tire changer.
  7. Rebalance the wheel. See TIRE - FRONT - LH (BALANCE) .
  8. Reinstall the wheel. Wheel - Remove And Install .
  9. Program the TPMS sensor ID. See TPMS (SENSOR ID DRIVE LEARN) .
