BLE TPMS - Retrofit
WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
Last modified: 11/08/2022 14:53:41
NOTE:
See PERSONAL PROTECTION
to make sure wearing proper PPE when performing the below procedure.
WARNING:
This procedure is a DRAFT, although it has been validated. Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
Retrofit
- Remove the TPMS sensor from the wheel. See Sensor - TPMS - Remove And Replace .
- Use an IPA wipe to thoroughly clean the inside and outside of the TPMS sensor mounting hole.

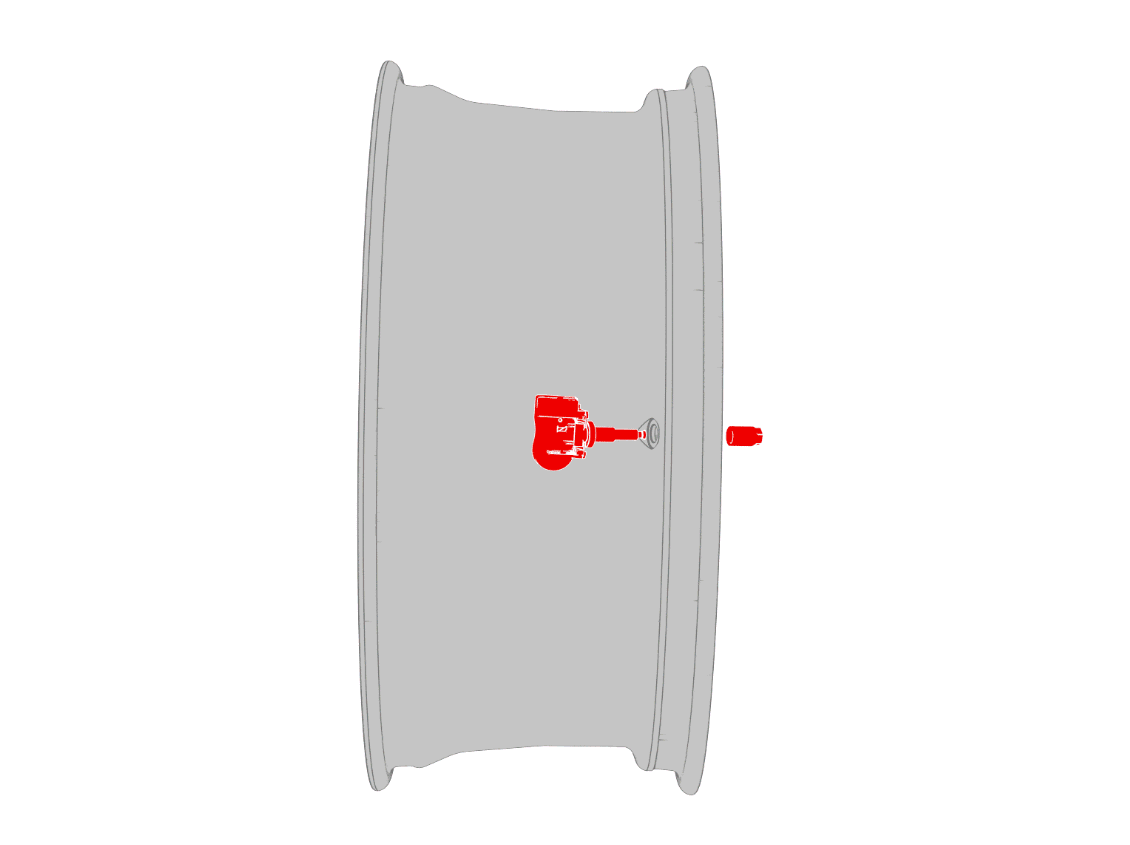

- Install the BLE TPMS sensor so that it fits closely to the wheel.
- Install the nut that secures the BLE TPMS sensor to the wheel.
8 N.m (5.9 lbs-ft)
- Release the upper bead roller, and allow the bead to seat against the wheel.
- Inflate the tire to seat the bead.
- Install the valve stem core, and then remove the wheel from the tire changer.
- Rebalance the wheel. See TIRE - FRONT - LH (BALANCE) .
- Reinstall the wheel. See Wheel - Remove And Install .
- Repeat steps 1 through 9 for all wheels.
- Update the Vehicle Configuration. See BLE TPMS - Update Configuration .
- Test drive the vehicle to at least 15 mph (24 kph) for 1-3 minutes to reconnect the TPMS sensors.
- Confirm on the vehicle touchscreen that all 4 TPMS sensors are providing tire pressure readings.
