Mechanism - Pivot - Touchscreen - Remove And Replace: Remove
- Remove the touchscreen.

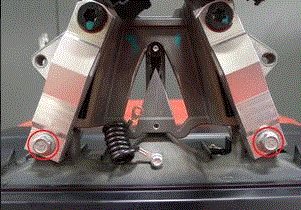

- Remove and discard the bolts (x2) that attach the touchscreen pivot mechanism to the display housing.
Tip: Use of the following tool(s) is recommended:
- 2 in extension
- 10 mm socket
- Flex head ratchet/flex head torque wrench

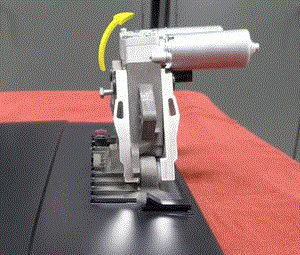

- Remove the touchscreen pivot mechanism from the display housing.NOTE: Lift and tilt the mechanism off of the display housing.
