Panel - Service - Center Console - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Move the driver seat fully backward.

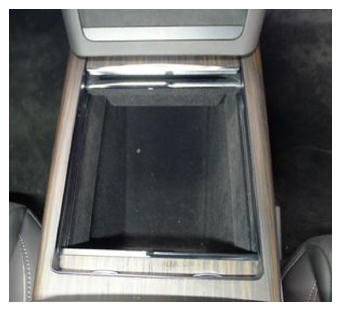

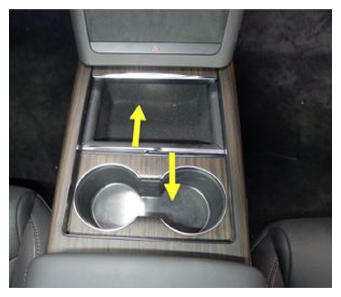

  3. Access the front center console storage compartment.
    NOTE: Fully retract the center console lid, cup holder, and then the sliding tray into the locked position.

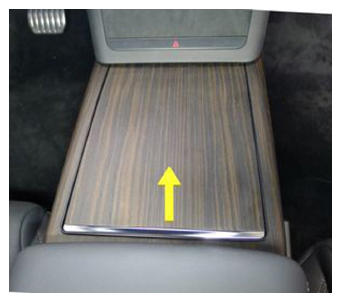

    G15084650Courtesy of TESLA, INC.

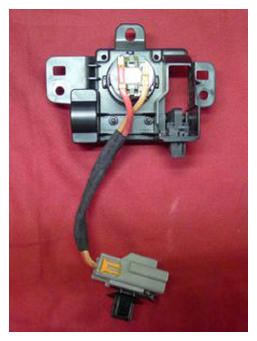

    G15084651Courtesy of TESLA, INC.
    G15084652Courtesy of TESLA, INC.

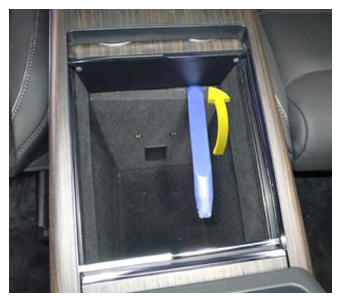

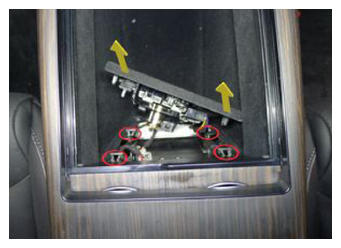

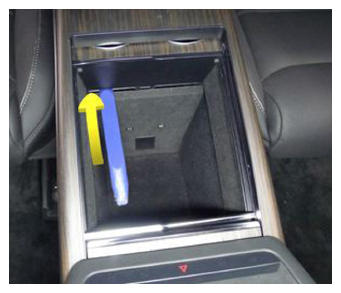

  4. Release the clips (x4) that attach the center console service panel.
    NOTE: Release the clips and pull the panel up to access the electrical harness.

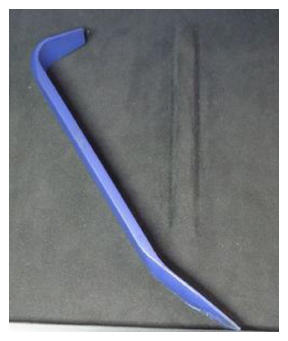

    NOTE: Use 90 degree plastic trim tool.
    G15084653Courtesy of TESLA, INC.
    G15084654Courtesy of TESLA, INC.
    G15084655Courtesy of TESLA, INC.
    G15084656Courtesy of TESLA, INC.

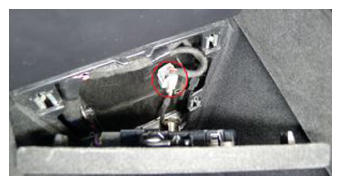

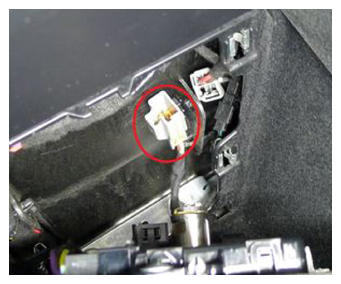

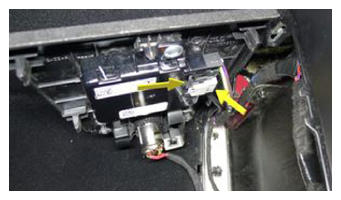

  5. Disconnect the electrical connectors (x3), and then release the electrical harness clip.
    G15084657Courtesy of TESLA, INC.
    G15084658Courtesy of TESLA, INC.
    G15084659Courtesy of TESLA, INC.

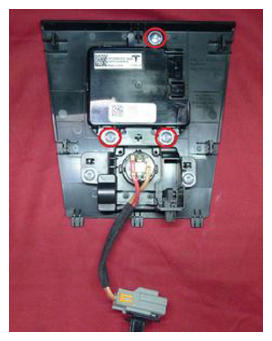

  6. Remove the screws (x3) that attach the front USB hub to the center console service panel.

    1.5 N.m (1.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    G15084660Courtesy of TESLA, INC.

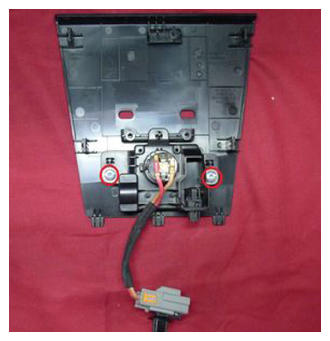

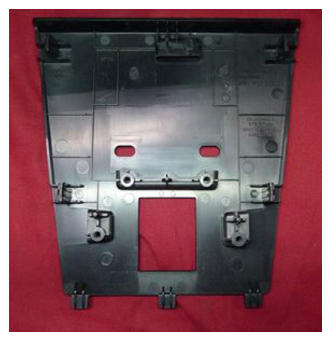

  7. Remove the screws (x2) that attach the 12V power outlet to the center console service panel.

    1.5 N.m (1.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    G15084661Courtesy of TESLA, INC.
    G15084662Courtesy of TESLA, INC.
    G15084663Courtesy of TESLA, INC.
