Bracket - Radar - Front - Remove And Replace: Remove
- Remove the front fascia. See: Fascia Assembly - Front (Remove and Install) .

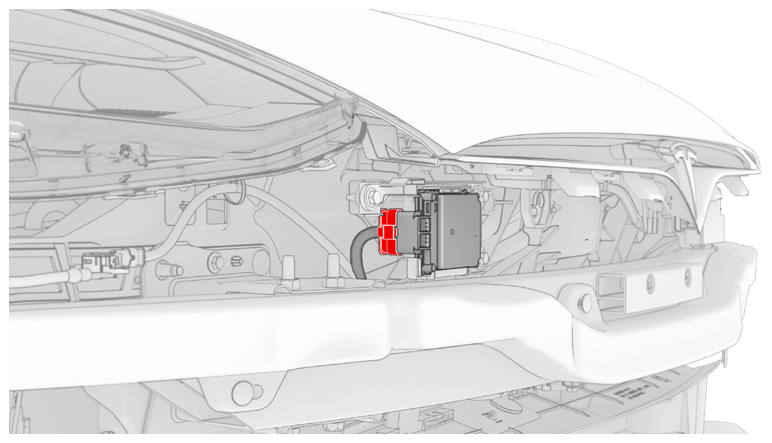

- Disconnect the electrical harness from the radar.

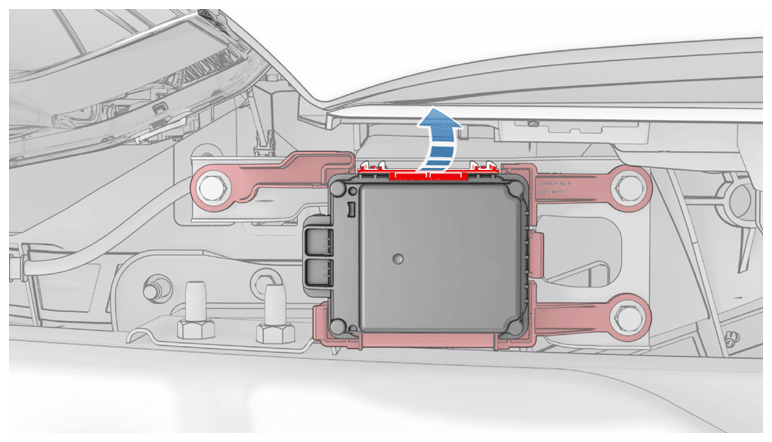

- Release the tab that attaches the radar to the radar bracket.

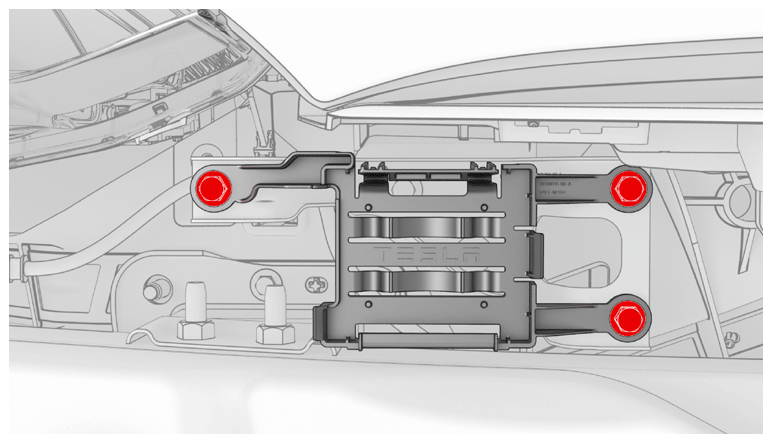

- Remove the three bolts that attach the radar bracket to the vehicle.
Tip: Use one hand to hold the bracket steady while removing the bolts to prevent the bracket from flexing.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- 2 in extension
- Flex head ratchet/flex head torque wrench
