Sensor - Radar - Center - Front - Remove And Replace: Removal

  1. Remove the front fascia Fascia Assembly - Front (Remove And Install) .

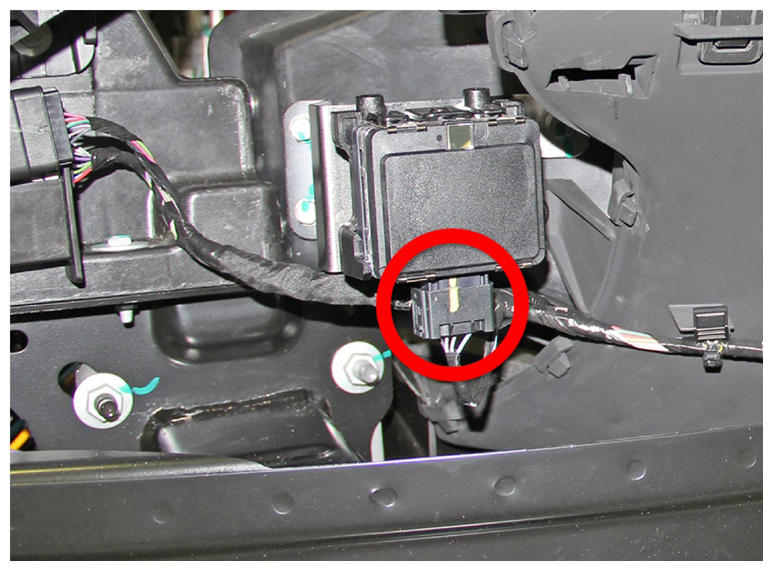

  2. Disconnect the harness on the bottom of the radar sensor.
    G15203044Courtesy of TESLA, INC.

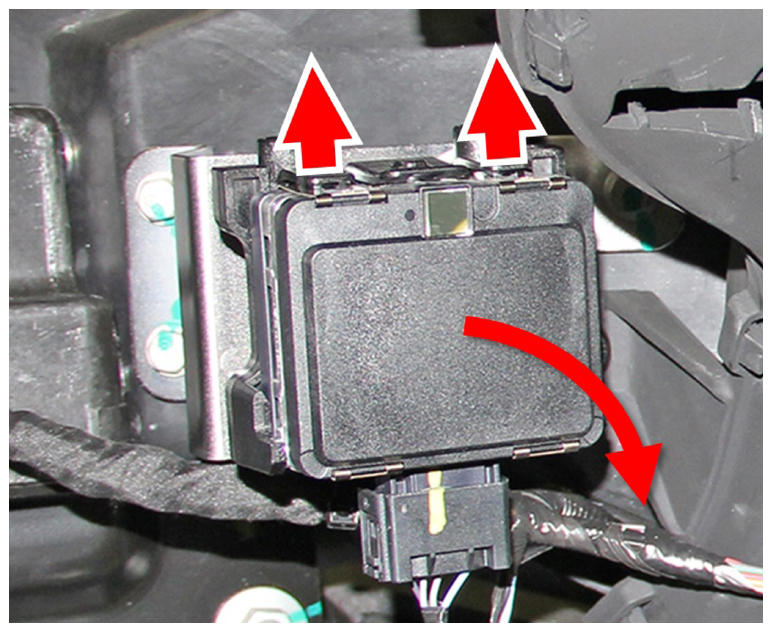

  3. Use a trim tool or flathead screwdriver to gently pry up the tabs on the top of the radar bracket. Gently release the radar sensor from the bracket.
    NOTE: The following image shows the electrical connector still connected to the bottom of the radar sensor.
    G15203045Courtesy of TESLA, INC.
  4. Remove the radar sensor from the vehicle.
