Subframe Assembly - Front - 2nd Generation - Remove And Replace: Installation

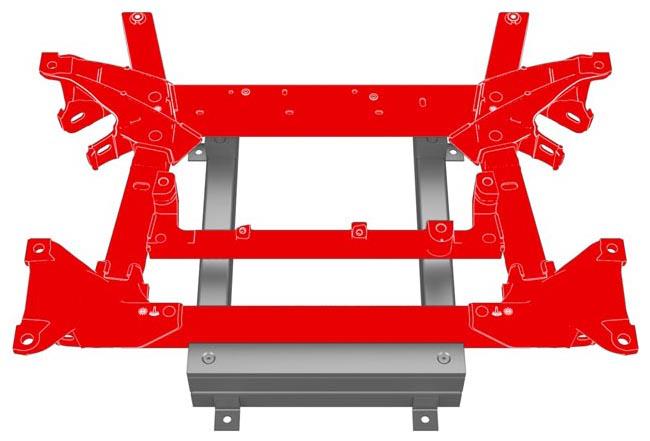

- Put the new front subframe assembly on the powertrain table/subframe fixture.
 Courtesy of TESLA, INC.
|

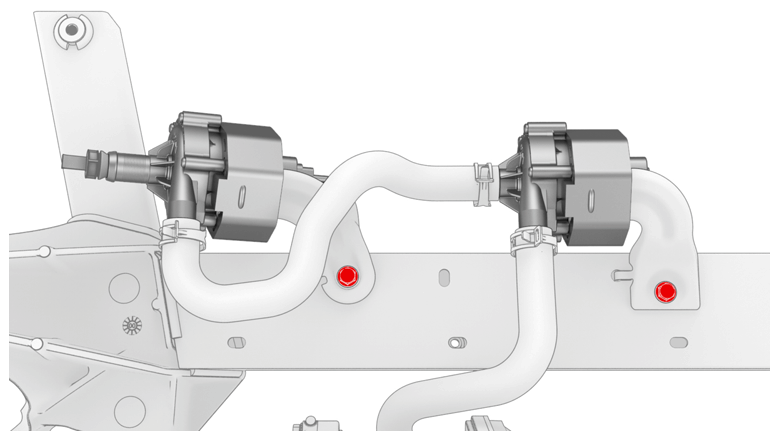

- Position the battery coolant pumps on the front subframe assembly for installation.
- Install the bolts (x2) that attach the battery coolant pumps to the front subframe assembly (torque 12 N.m).
 Courtesy of TESLA, INC.
|

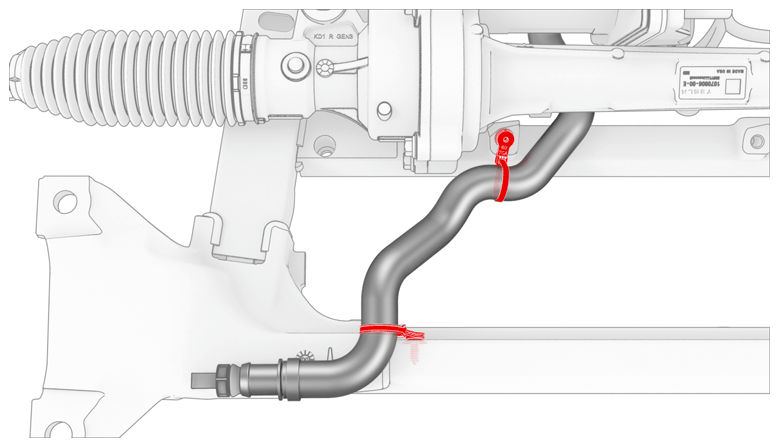

- Install the fir tree clips (x2) that attach the battery coolant pump 2 hose to the front subframe assembly.
 Courtesy of TESLA, INC.
|

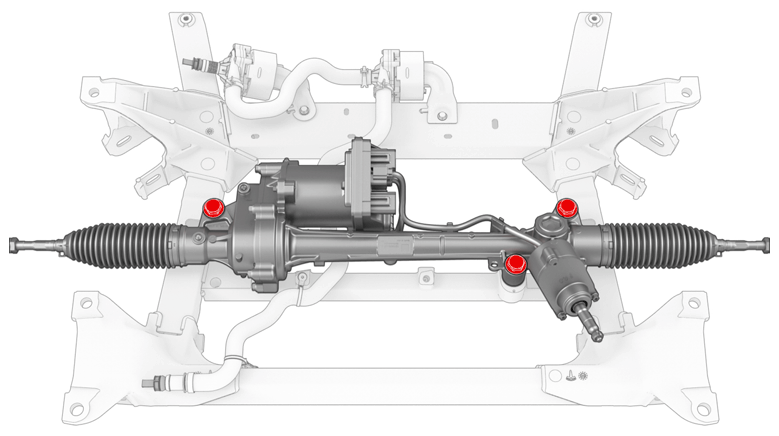

- Install the bolts (x3) that attach the steering rack to the front subframe assembly (torque 175 N.m).
 Courtesy of TESLA, INC.
|

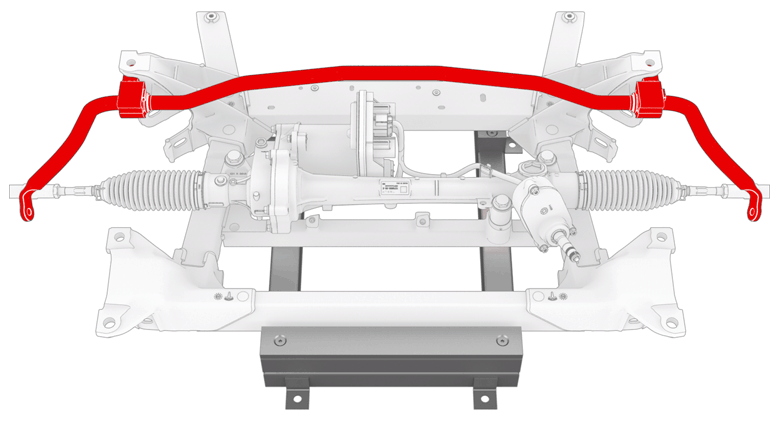

- Install the front stabilizer bar into position for installation on the front subframe assembly.
 Courtesy of TESLA, INC.
|
- Put the front subframe assembly with the powertrain table/subframe fixture under the vehicle for installation.
- Install the front subframe assembly onto the vehicle. See SUBFRAME ASSEMBLY - FRONT - 2ND GENERATION (REMOVE AND INSTALL) .
- Refer to the Alignment Requirement tables to determine if an alignment check (AC) or full adjustment (FA) is necessary. See ALIGNMENT REQUIREMENT - SUSPENSION
.
