Spring And Damper Assembly - Front - LH - Remove And Replace: Removal

  1. Remove the front road wheel Wheel (Remove And Install) .
  2. Lower the vehicle.
  3. Remove the underhood apron Underhood Apron - Rear (Remove And Replace) .

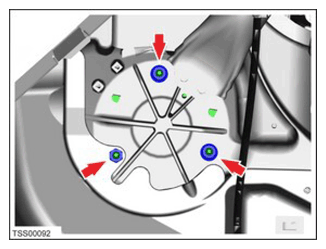

  4. Remove the nuts (x3) that secure the coil spring module top mounting (torque 39 N.m).
    G14980921Courtesy of TESLA, INC.
  5. Raise the vehicle.
  6. Release the wheel speed sensor harness from the knuckle.

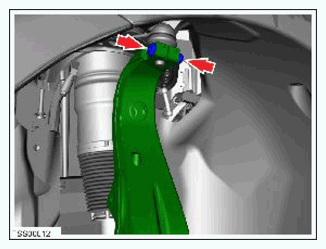

  7. Remove the nut and bolt that secure the upper control arm to the knuckle (torque 60 N.m).
    G14980922Courtesy of TESLA, INC.

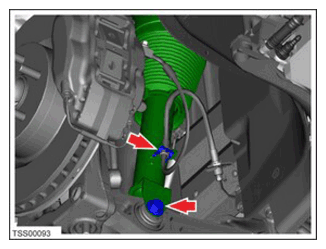

  8. Note the orientation of the clip that secures the brake hose to the spring and damper assembly. Release the clip.
  9. Remove the nut and bolt that secure the spring and damper assembly to the lower arm (torque 140 N.m).
    CAUTION: Take care not to damage component(s).
    CAUTION: Replace all nylon-insert locknuts.
    NOTE: The following image shows a rear wheel drive (RWD) assembly. The assembly in a dual motor (DM) vehicle looks different.
    G14980923Courtesy of TESLA, INC.

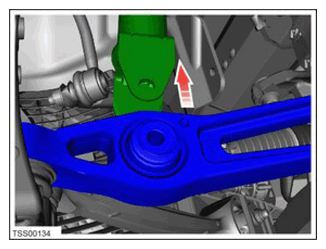

  10. Release the spring and damper assembly from the lower arm.
    G14980924Courtesy of TESLA, INC.
  11. Remove the spring and damper assembly.
    CAUTION: Ensure that you do not damage the halfshaft if removing a spring and damper assembly from a DM vehicle.

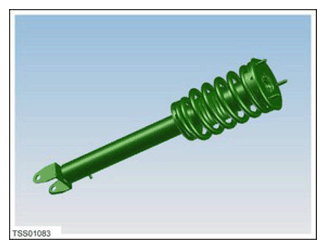

    RWD spring and damper assembly DM spring and damper assembly
    G14980925Courtesy of TESLA, INC.
    G14980926Courtesy of TESLA, INC.
    NOTE: Replace LH and RH front spring and damper assemblies if the vehicle has over 80, 500 kilometers (50, 000 miles).
