Sensor - Shotgun Accelerometer - LH - Remove And Replace: Removal

  1. Open the hood.
  2. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  3. Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  4. Remove the HEPA filter inlet duct. See Duct - HEPA Filter - Inlet (Remove and Replace) .
  5. Remove the HEPA filter outlet duct. See Duct - HEPA Filter - Outlet (Remove and Replace) .
  6. Disconnect the First Responder Loop and 12V battery negative terminal.
    NOTE: Proceed to the next step only when the First Responder Loop has been disconnected for at least 2 minutes.

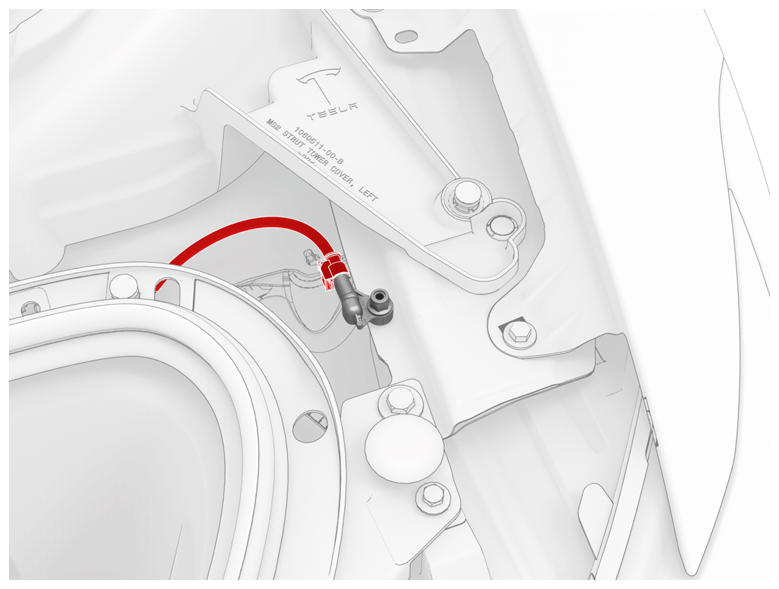

  7. Release the locking tab, and then disconnect the electrical connector from the LH shotgun accelerometer sensor.
    G14979933Courtesy of TESLA, INC.

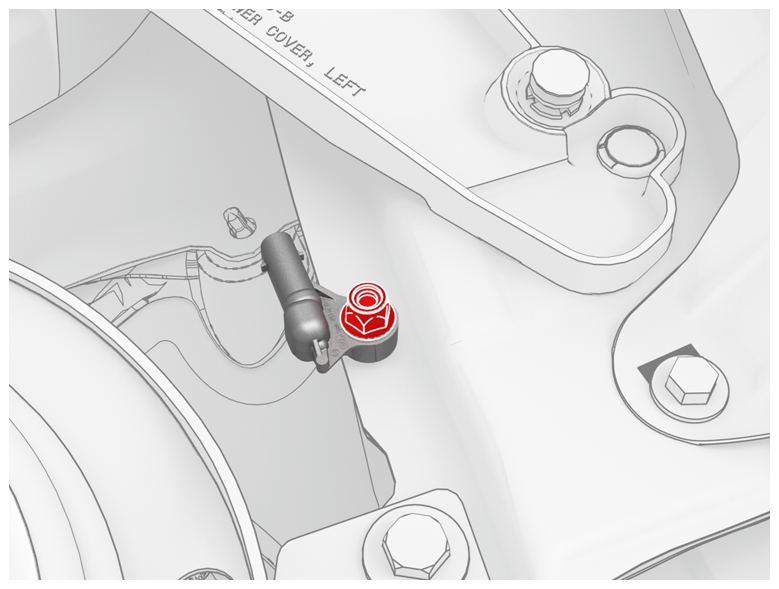

  8. Remove and discard the nut that attaches the LH shotgun accelerometer sensor to the LH fender, and then remove the sensor from the vehicle.
    G14979934Courtesy of TESLA, INC.
