Sensor - Impact - Front - LH - Remove And Replace: Removal

This procedure is for vehicles produced before February 26, 2019. For vehicles produced on or after February 26, 2019, see SENSOR - IMPACT ACCELEROMETER - FRONT BUMPER - LH (REMOVE AND REPLACE) .

1. Remove the HEPA filter outlet duct. See Duct - HEPA Filter - Outlet (Remove and Replace) .
2. Disconnect 12V power and the first responder loop. See Disconnect 12V Power .
3. Remove the underhood storage unit:
   • Rear wheel drive (RWD): Underhood Storage Unit (Remove And Install) .
   • Dual Motor:  refer to Underhood Storage Unit (Remove And Install)

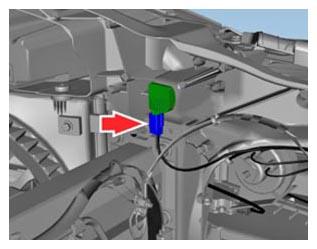

4. Disconnect the front impact sensor connector.

   Courtesy of TESLA, INC.

5. Loosen the screw that secures the impact sensor to the front carrier (torque 6 N.m).
   CAUTION: The screw is left-hand threaded/reverse threaded. However, when the screw is being loosened from the tip (as opposed to the head), it functions the same as a normal screw.

   Courtesy of TESLA, INC.

6. Remove the front impact sensor.
