2nd Generation RWD: Installation

Installation procedure is the reverse of removal, except for the following:

CAUTION: The new compressor is pre-filled with the total amount of oil used in the A/C system. Oil needs to be removed so that the amount of oil in the new compressor equals the amount of oil in the old one. To do this, use a digital scale to weigh both the old and new compressors. Turn the new one upside down to drain a small amount of oil, then re-weigh it. Repeat this process until the new compressor weighs the same as the old one.

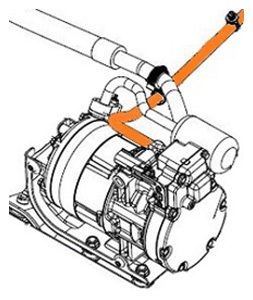

Ensure that the HV cable is routed under the suction and discharge lines and that the clip is installed onto the suction line.

Courtesy of TESLA, INC.
Perform the thermal system test. See Cooling System - Thermal Test .
Recharge the A/C system. See A/C Refrigerant Recovery And Recharge (Remove And Replace) .
Ensure there is sufficient clearance between the HV connector and the bottom of the underhood storage compartment. If there is contact, adjust the position of the bracket that supports the HV connector.
