Diagnostic Connector Location

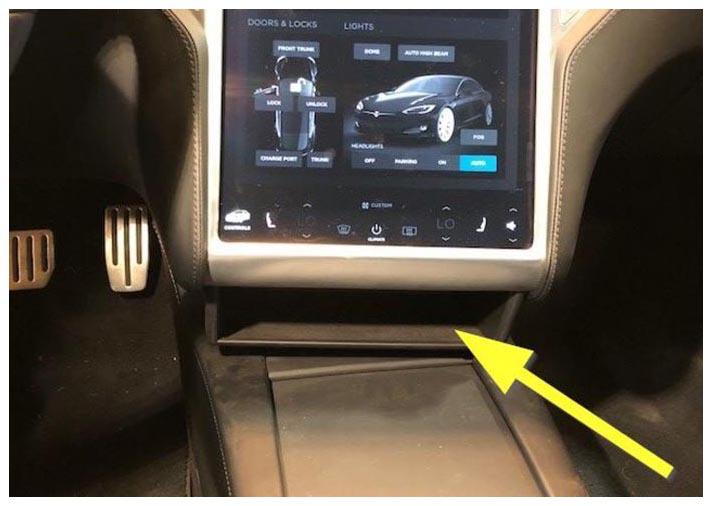

The diagnostic connector on Model S vehicles after August 2014 is located in the center console beneath the screen.

G14974644Courtesy of TESLA, INC.

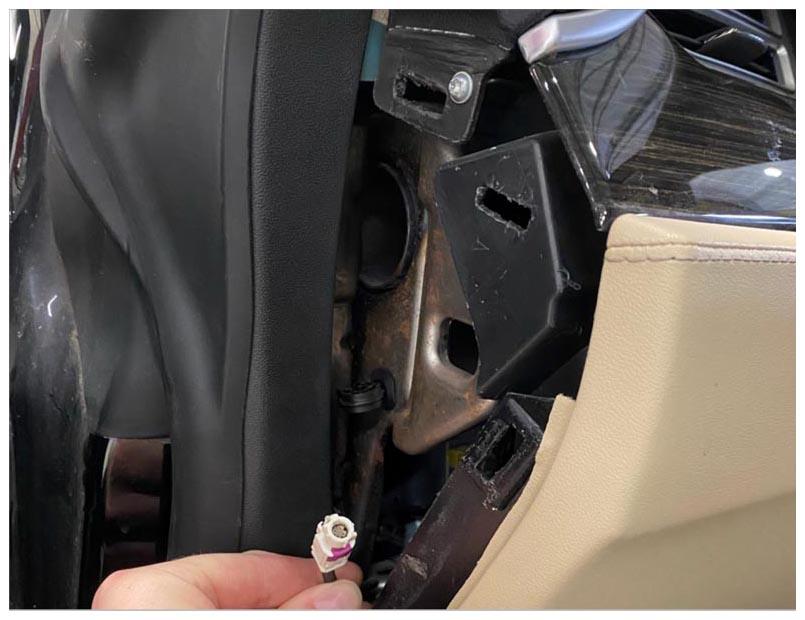

Prior to August 2014, the diagnostic connector for Model S vehicles is located behind the LH side cover of the instrument panel.

NOTE: On RHD vehicles, the diagnostic connector is located behind the RH side cover of the instrument panel.
G14974645Courtesy of TESLA, INC.
