Windshield Preparation

  1. Remove the masking tape from the A-pillars and the headliner.
  2. Remove the old urethane bead from the body with the razor blade scraper tool and a winged scraper set.
    NOTE: Make sure residual urethane is 1 mm or less in thickness.

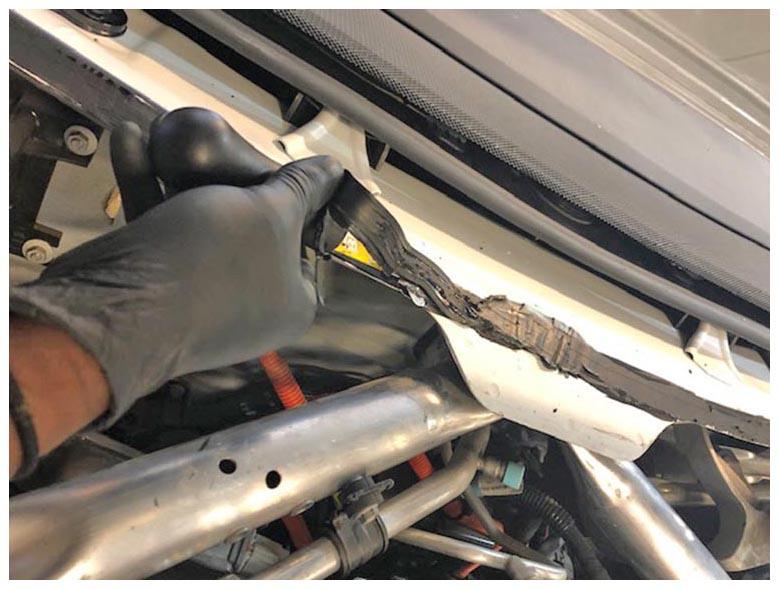

    G14975006Courtesy of TESLA, INC.
  3. Remove the urethane bead and windshield seals from the glass with the razor blade scraper tool and a winged scraper set.

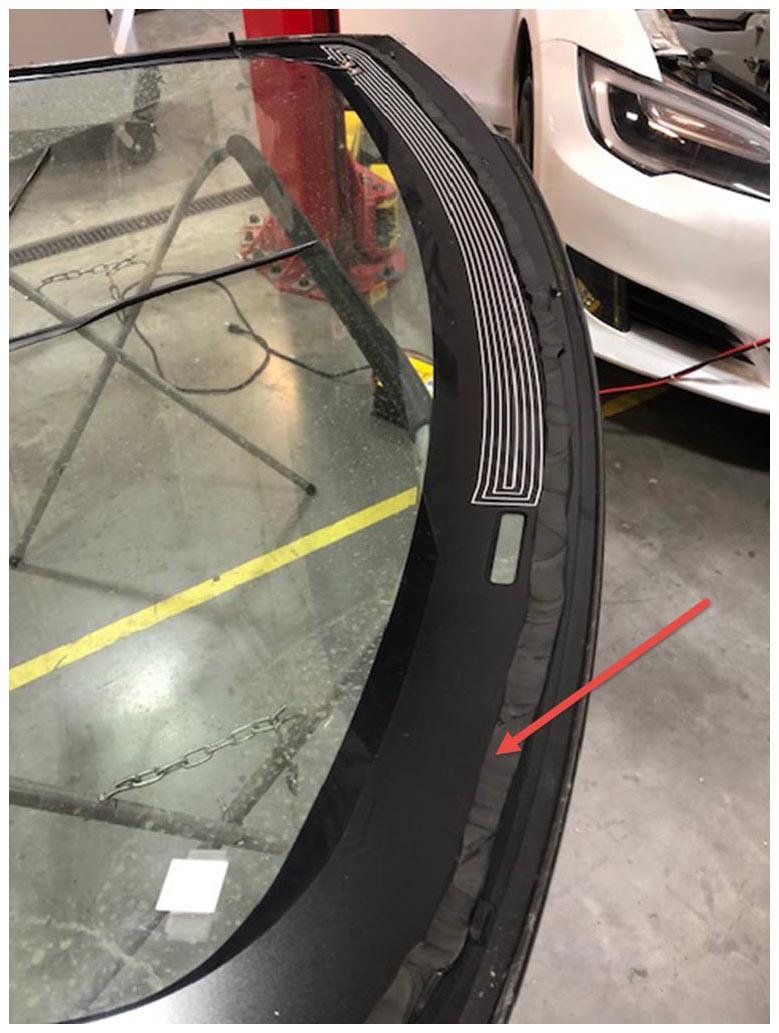

    G14975007Courtesy of TESLA, INC.
  4. Use a permanent market to draw an outline around the old locator pins to assist you with the installation of new locator pins.
    NOTE: The use of a permanent marker won't allow the outline to be removed during cleaning.

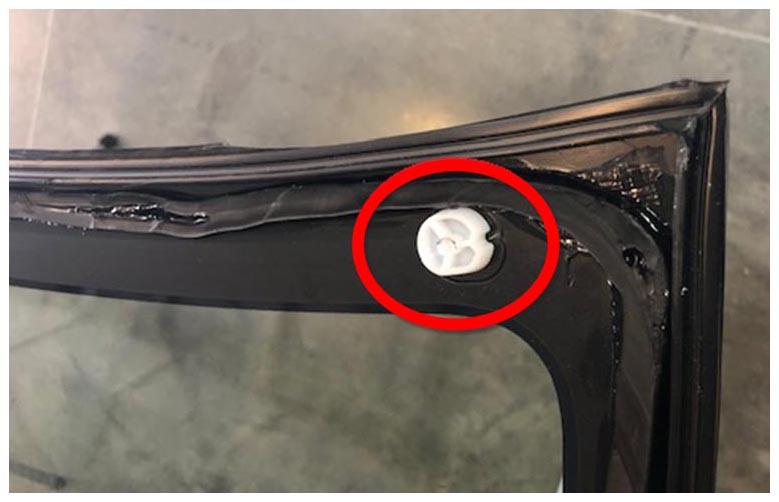

  5. Remove the old locator pins using the razor blade scraper tool.
    G14975008Courtesy of TESLA, INC.
  6. Remove the net pads (x3) using the razor blade scraper tool.

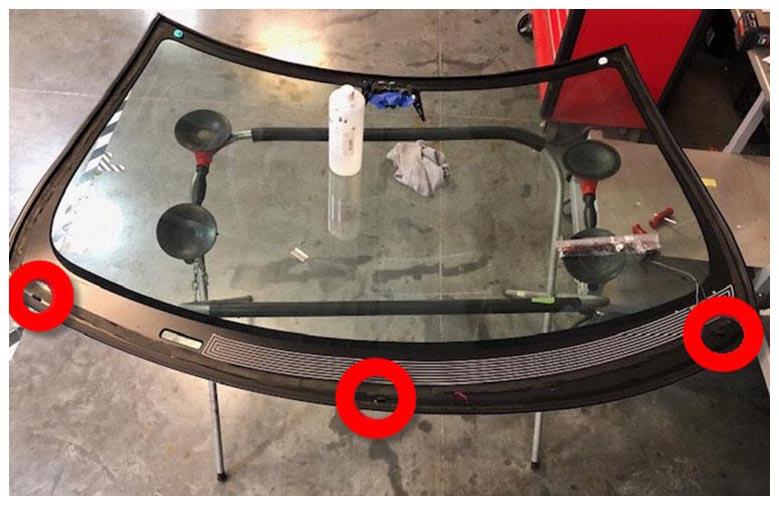

    G14975009Courtesy of TESLA, INC.
  7. Remove the double sided tape residue using the razor blade scraper tool or an eraser wheel.

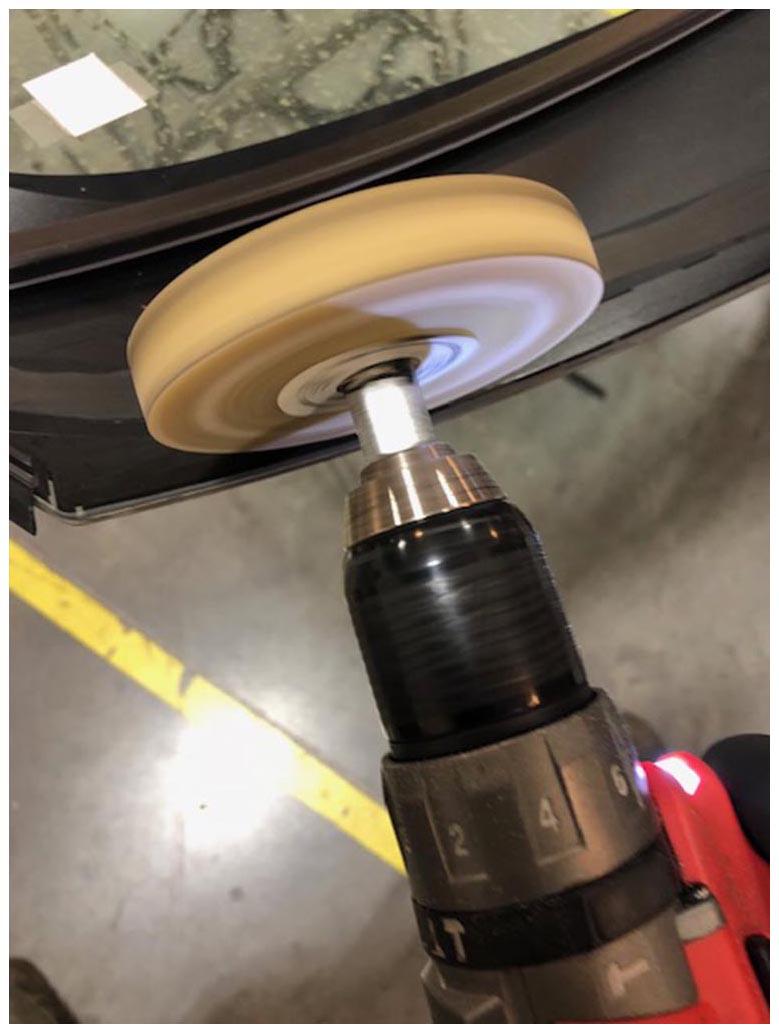

    G14975010Courtesy of TESLA, INC.
  8. Clean the mating surfaces with Isopropyl Alcohol (IPA).
  9. Measure the electrical resistance of the wiper heater grind using a multimeter: If the measured resistance is 2.34 ohms at 23 degrees C (+/- 15 %), continue to the next step. Otherwise, replace the windshield. See WINDSHIELD (REMOVE AND REPLACE)
  10. Install the windshield edge seal.
    NOTE: Follow the windshield alignment marks at the lower corners of the glass.

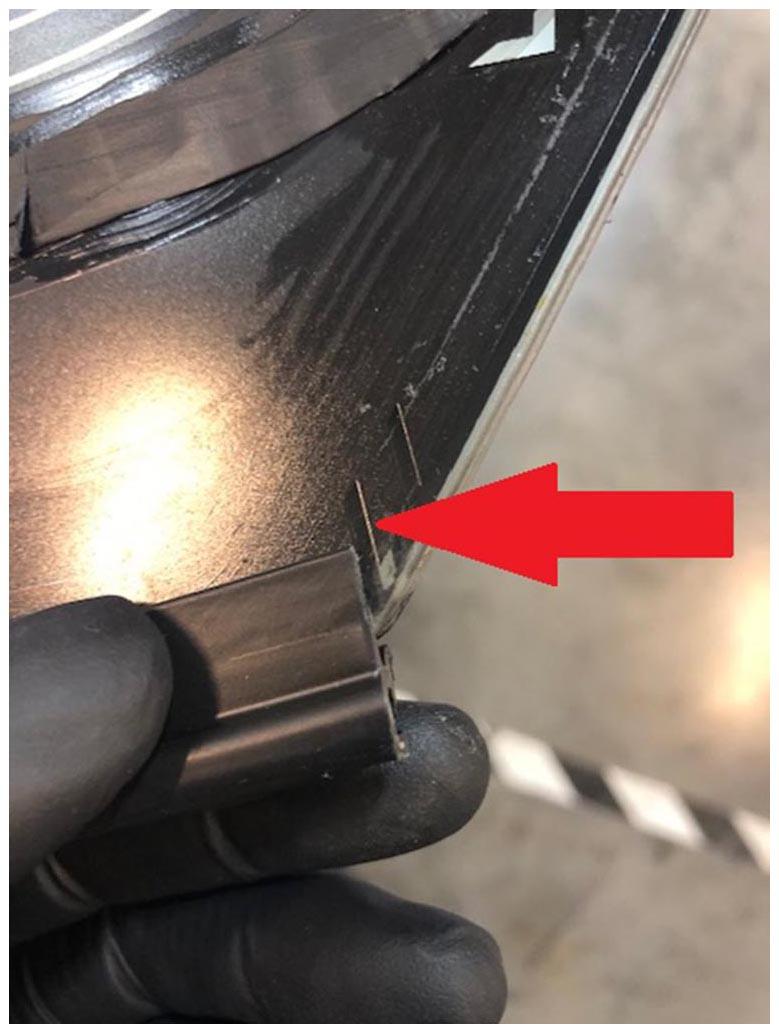

    G14975011Courtesy of TESLA, INC.
  11. Install the windshield lip seal.
    NOTE: Follow the windshield alignment marks at the upper corners of the glass: Start from one corner, and then peel the tape as you apply the seal slowly to ensure proper fitment.

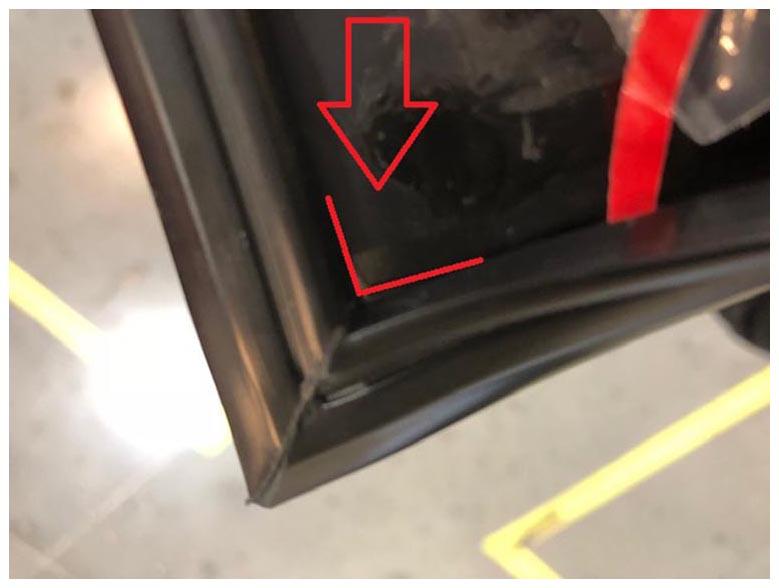

    G14975012Courtesy of TESLA, INC.
  12. Install the net pads (x3).
    G14975013Courtesy of TESLA, INC.
    NOTE: There will be alignment marks on the glass for the installation of the net pads.

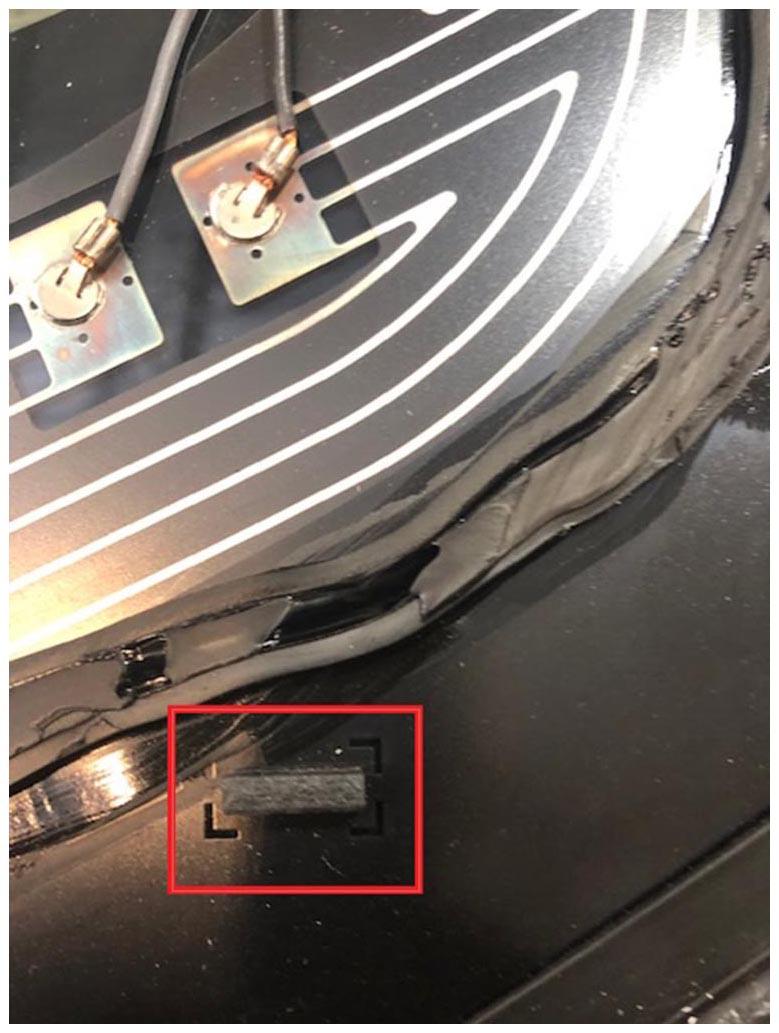

    G14975014Courtesy of TESLA, INC.
  13. Install new locator pins (x2).

    RH side shown, LH side similar

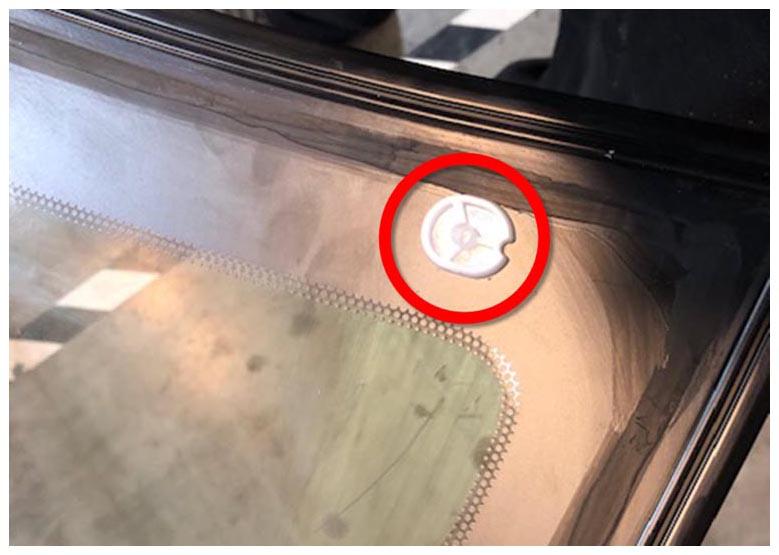

    G14975015Courtesy of TESLA, INC.
