Center Console - Remove and Replace: Install

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.

With an assistant, install the center console into the vehicle as follows:
1. Tilt the front of the center console downwards.
2. Slide the center console towards the front of the vehicle.
3. Tilt the rear of the center console downwards until it is in place.
Open the center console rotating lid.

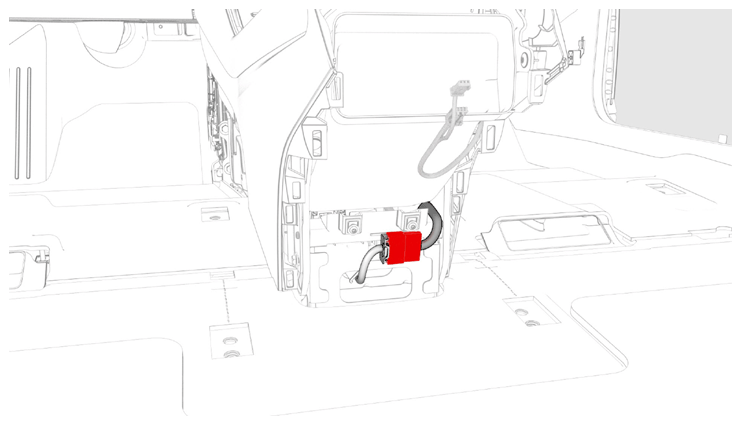

Connect the electrical connector in the rear of the center console.
CAUTION: Ensure the connector is properly installed. Perform a push-pull test before continuing this procedure.

Courtesy of TESLA, INC.
Reconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
Connect a laptop with Toolbox 3 to the vehicle.
Using Toolbox, type "VCSEC" in the search tab.
NOTE: Make sure "Actions" is selected, if not already.
Using Toolbox, click the play button next to "PING-TP_VCSEC", and then select Run .
Update the vehicle firmware. See FIRMWARE UPDATE .
Using Toolbox, click the play button next to "PROC_VCSEC_X_PROVISIONING", and then select Run .
Using Toolbox, click the play button next to "TEST-SELF_VCSEC_X_ENDPOINT-COMM" and select Run .
Place the NFC cards on the center console behind the cup holders.
NOTE: 2 NFC cards are required when pairing: 2 unprogrammed NFC cards, or 1 unprogrammed NFC card and one previously programmed NFC card.
Using Toolbox, click the play button next to "PROC_VCSEC_C_PAIR-NFC-CARD" and select Run .
Using Toolbox, type the number of NFC cards to be paired to the vehicle, and then select Submit .
Check the function of the programmed NFC cards.
Using Toolbox, type "IMMOBILIZER" in the search tab.
Using Toolbox, click the play button next to "PROC_DI_X-IMMOBILIZER", and then select Run .
Using Toolbox, type "ODOMETER" in the search tab.
Using Toolbox, click the play button next to "PROC-DID_DI_VEHICLE-ODOMETER", and select Run .
Using Toolbox, type "RESET_DI" in the search tab.
Using Toolbox, click the play button next to "TEST-RESET_DI", and then select Run .
Disconnect the laptop from the vehicle.

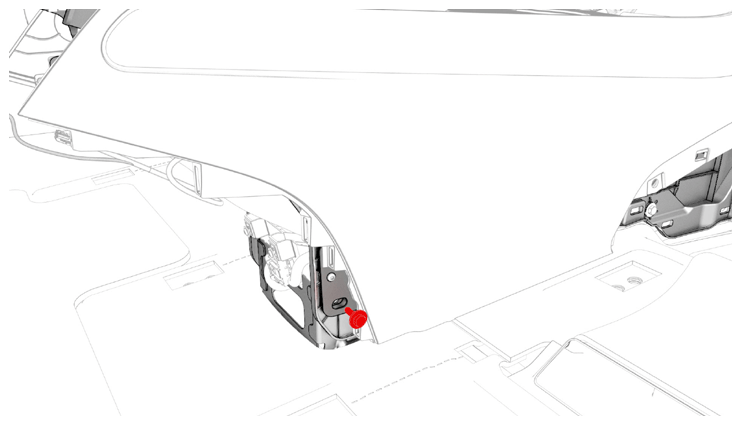

Install the bolt that attaches the RH rear of the center console to the body.
7 N.m (5.2 ft-lbs)

Courtesy of TESLA, INC.

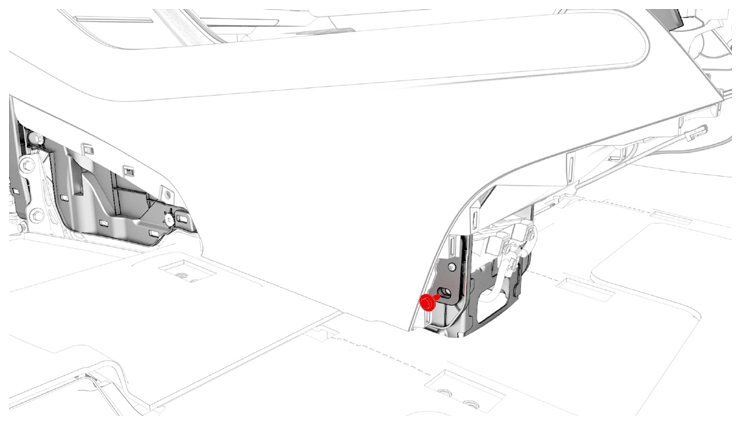

Install the bolt that attaches the LH rear of the center console to the body.
7 N.m (5.2 ft-lbs)

Courtesy of TESLA, INC.
Install the center console lower rear panel. See PANEL - LOWER REAR - CENTER CONSOLE (REMOVE AND REPLACE) .

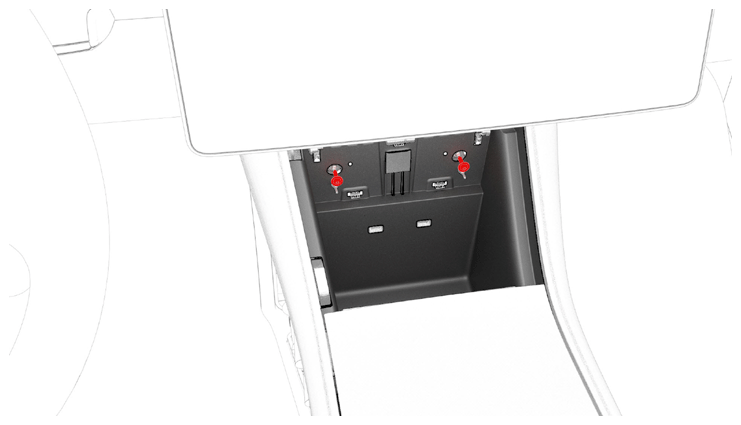

Install the bolts that attach the front of the center console to the body.
1.7 N.m (1.3 ft-lbs)

Courtesy of TESLA, INC.
Install the phone tray. See PHONE TRAY - CENTER CONSOLE (REMOVE AND REPLACE) .

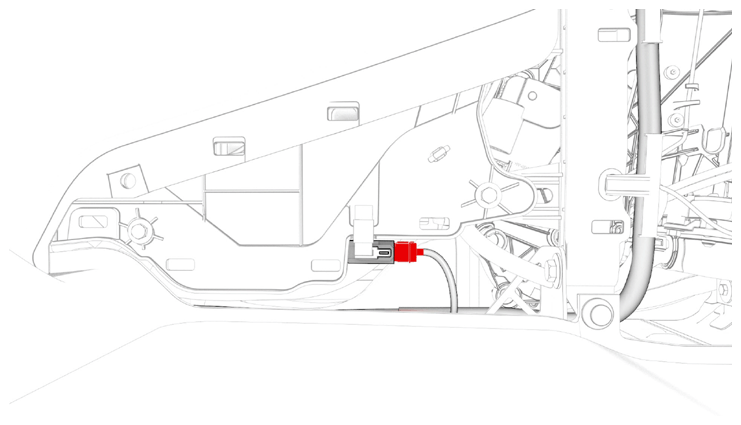

Connect the electrical connector that is located at the RH front of the center console.
CAUTION: Ensure the connector is properly installed. Perform a push-pull test before continuing this procedure.

Courtesy of TESLA, INC.

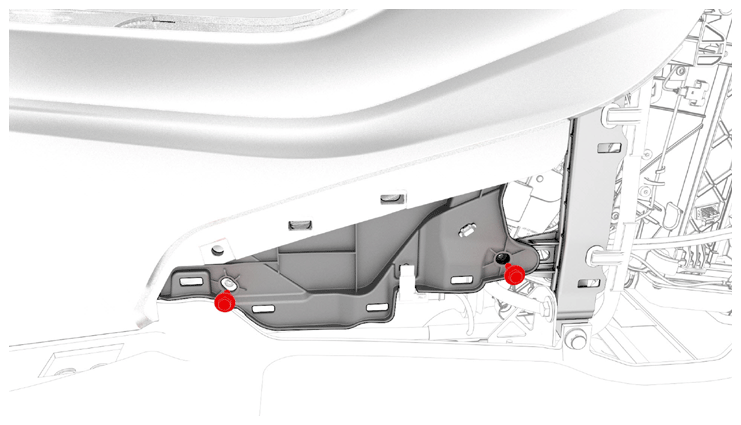

Install the bolts that attach the RH front of the center console to the body.
7 N.m (5.2 ft-lbs)

Courtesy of TESLA, INC.
Install the RH center console side panel carpet. See SIDE PANEL - CENTER CONSOLE - LH (REMOVE AND REPLACE) .
Install the front passenger floormat.

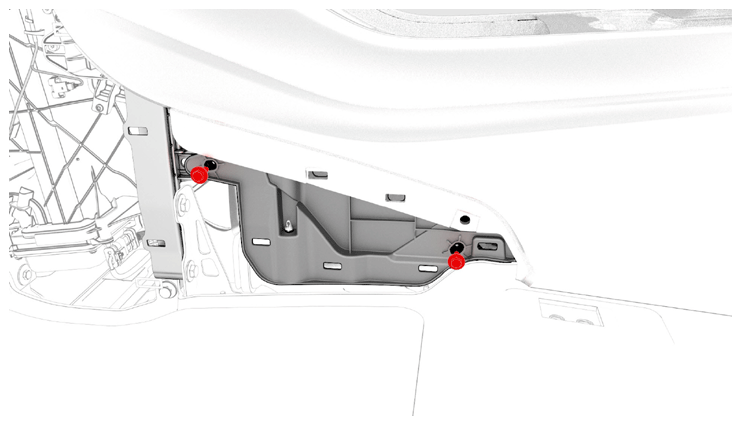

Install the bolts that attach the LH front of the center console to the body.
7 N.m (5.2 ft-lbs)

Courtesy of TESLA, INC.
Install the LH center console side panel carpet. See SIDE PANEL - CENTER CONSOLE - LH (REMOVE AND REPLACE) .
Install the driver floormat.
Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
Install the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
Restore the customer's belongings into the center console, if needed.
