Sensor - Radar - Front - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .

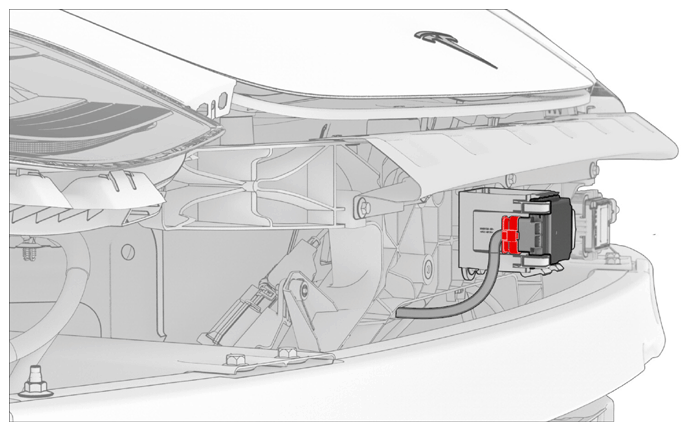

  2. Disconnect the electrical harness connector from the radar sensor.
    G14833788Courtesy of TESLA, INC.

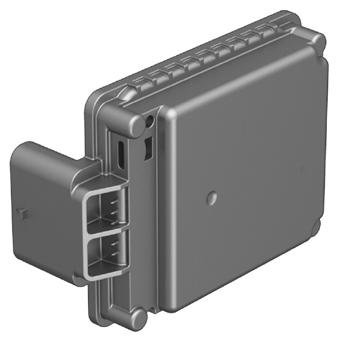

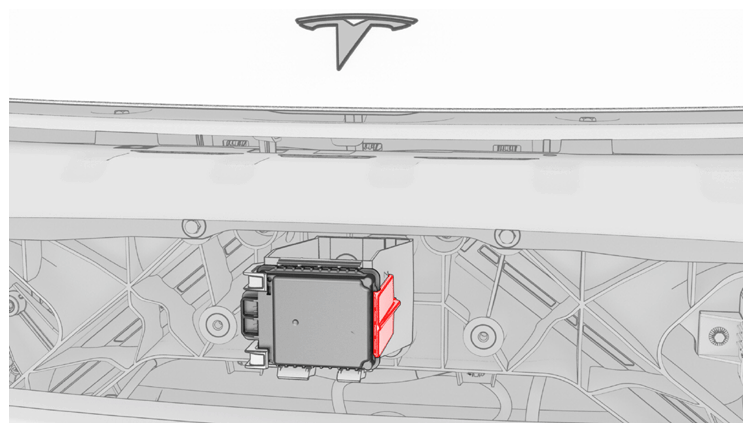

  3. Release the holding tab that attaches the radar sensor to the front radar sensor bracket, and then remove the sensor from the vehicle.
    G14833789Courtesy of TESLA, INC.
    G14833790Courtesy of TESLA, INC.
