Switch - Light - Center Console - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open all doors and fully lower all windows.
  2. Remove the center console lower rear panel. See PANEL - LOWER REAR - CENTER CONSOLE (REMOVE AND REPLACE) .
  3. Remove the center console rear vent assembly. See Assembly - Rear Vent - Center Console (Remove and Replace) .
  4. Remove the center console end panel. See END PANEL - CENTER CONSOLE (REMOVE AND REPLACE) .

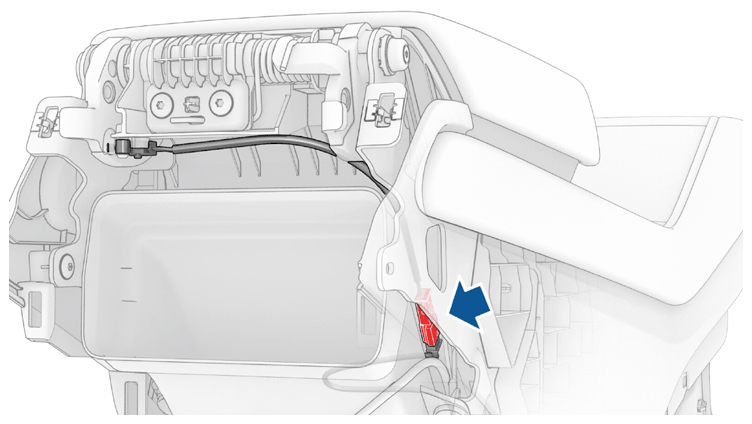

  5. Disconnect the electrical connector from the rear of the center console.
    G14824601Courtesy of TESLA, INC.

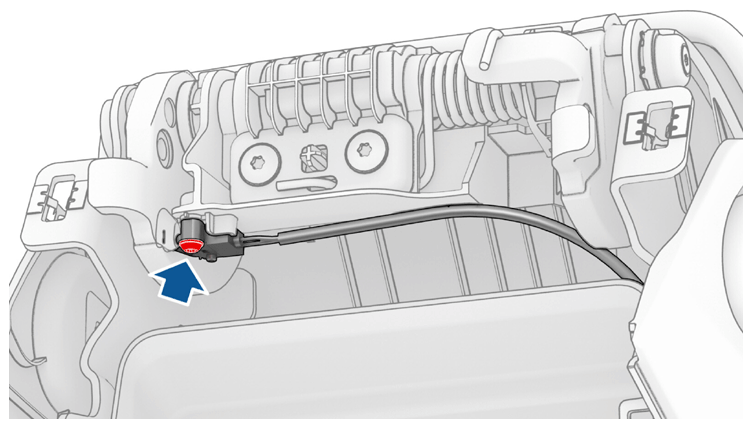

  6. Remove the screw that attaches the center console light switch to the center console, and then remove the switch.

    0.5 N.m (4 in-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T15 socket
    • Flex head ratchet/flex head torque wrench
    G14824602Courtesy of TESLA, INC.

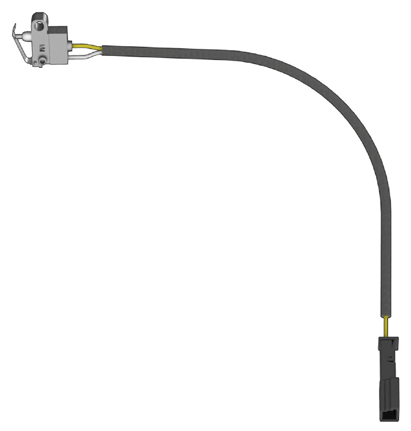

    G14824603Courtesy of TESLA, INC.
