End Panel - Center Console - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open all doors and fully lower all windows.
  2. Remove the center console lower rear panel. See PANEL - LOWER REAR - CENTER CONSOLE (REMOVE AND REPLACE) .
  3. Remove the center console air vent panel. See Assembly - Rear Vent - Center Console (Remove and Replace) .

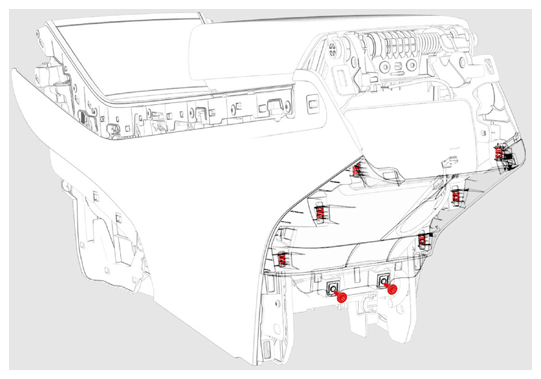

  4. Remove the bolts (x2) and release the clips (x6) that attach the center console end panel to the center console, and then remove the end panel from the console.

    1.1 N.m (.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 4 in extension
    G14824459Courtesy of TESLA, INC.

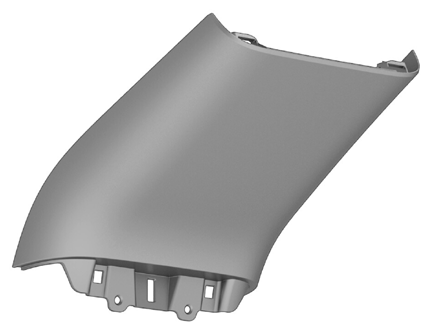

    G14824460Courtesy of TESLA, INC.
