Armrest - Center Console - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and attach the customer's belongings from the armrest, if needed.
  2. Lower all the windows, and then move the LH and RH front seats forward.
  3. Remove the center console lower rear panel. See PANEL - LOWER REAR - CENTER CONSOLE (REMOVE AND REPLACE) .
  4. Remove the center console air vent panel. See Assembly - Rear Vent - Center Console (Remove and Replace) .
  5. Remove the center console end panel. See END PANEL - CENTER CONSOLE (REMOVE AND REPLACE) .

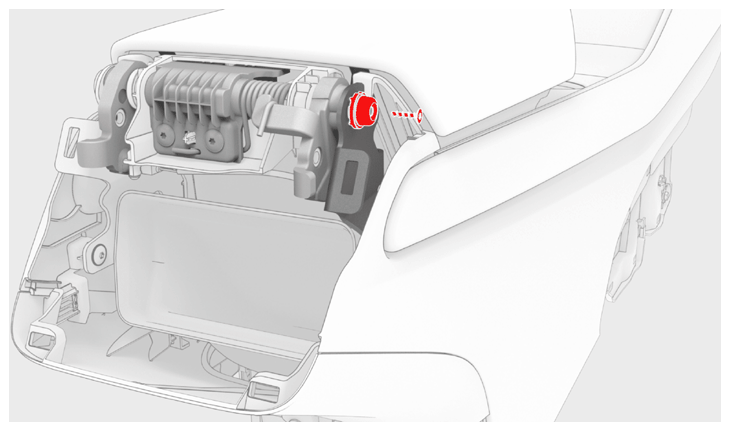

  6. Remove the screw that attaches the cap of the armrest hinge pin to the center console, and then remove the cap.

    1.6 N.m (1.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T15 socket
    • 4 in extension
    G14824365Courtesy of TESLA, INC.

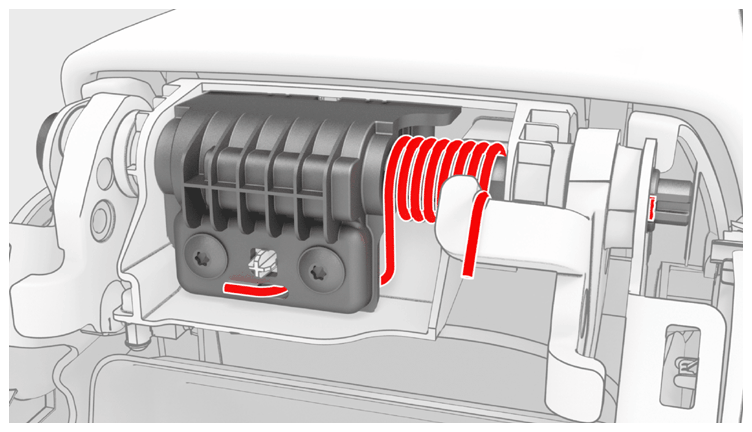

  7. Open the armrest, and then use a flat screwdriver to release the spring from the hook.
    G14824366Courtesy of TESLA, INC.

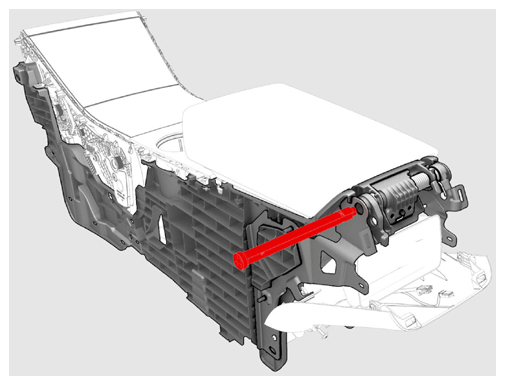

  8. Close the armrest, and then tap towards the LH side with a hammer and pin to remove the armrest hinge pin from the center console.
    NOTE: The armrest must be closed before proceeding.
    G14824367Courtesy of TESLA, INC.

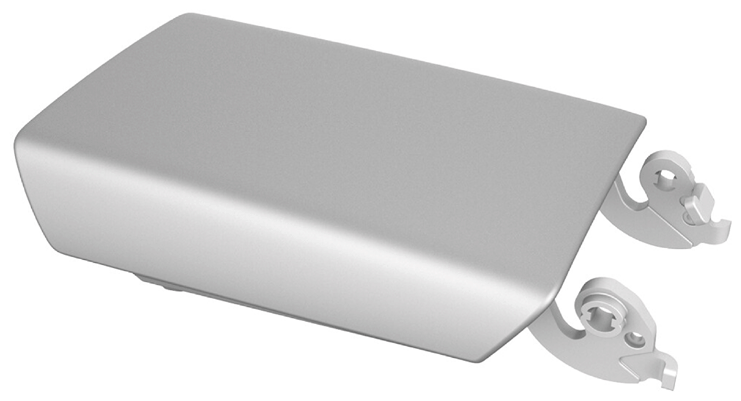

  9. Raise the armrest and remove it from the center console.
    G14824368Courtesy of TESLA, INC.
