Sensor - TPMS - Remove and Replace: Remove

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel. See WHEEL (REMOVE AND INSTALL) .
  2. Place the wheel on the tire changer, with the outside of the wheel facing up.
  3. Insert the center clamp.
  4. Tighten the cone on the center clamp.
  5. Remove the valve core, and allow the tire to deflate.
  6. Position the upper bead roller at the edge of the rim.
  7. Rotate the tire to loosen the upper bead. Lubricate the bead as the tire rotates.
  8. Position the upper bead roller approximately 100 mm from the valve stem, and then compress the bead to expose the TPMS sensor.
  9. Remove the nut that attaches the TPMS sensor to the wheel, and then remove the TPMS sensor.

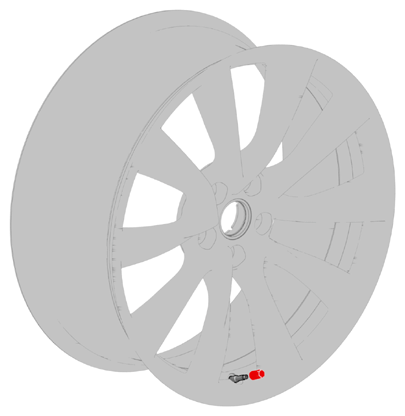

    G14749972Courtesy of TESLA, INC.

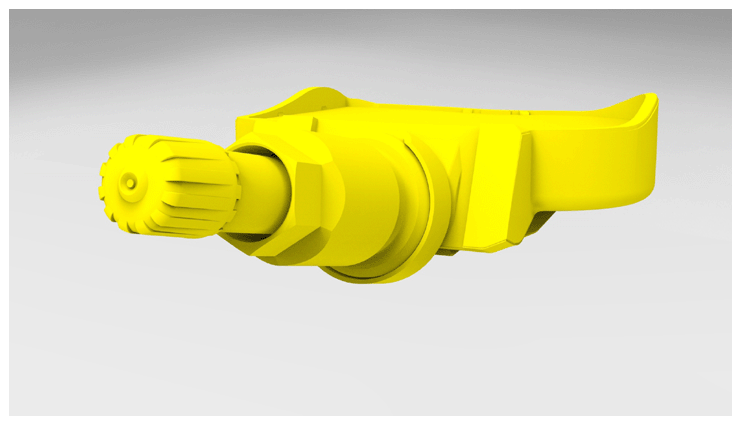

    G14749973Courtesy of TESLA, INC.
