Module - Body Controller - RH (LHD) (Heat Pump) - Remove and Replace: Remove

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front doors and lower the windows.
  2. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  3. Disconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
  4. Remove the LH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  5. Remove the LH air wave end cap. See END CAP - AIR WAVE - LH (REMOVE AND REPLACE) .
  6. Repeat steps  4 and  5 for the RH side of the vehicle.
  7. Remove the main instrument panel decor trim. See DECOR TRIM - INSTRUMENT PANEL - MAIN (REMOVE AND REPLACE) .
  8. Remove the RH middle A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
  9. Remove the RH lower A-pillar trim. See TRIM - A-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  10. Remove the passenger footwell cover. See COVER - FOOTWELL - PASSENGER (LHD) (REMOVE AND REPLACE) .
  11. Remove the front passenger knee airbag. See AIRBAG - KNEE - FRONT PASSENGER (REMOVE AND REPLACE) .
  12. Remove the glove box. See GLOVE BOX - WITH KNEE AIRBAGS (REMOVE AND REPLACE) .
  13. Remove the RH front floor mat.
  14. Remove the RH center console side panel carpet. See SIDE PANEL - CENTER CONSOLE - LH (REMOVE AND REPLACE) .
  15. Release the clips (x3) that attach the RH front carpet to the body at the RH A-pillar.
  16. Fold back the RH front carpet.
    NOTE: Release the seat harness from the clips at the RH door sill to allow the carpet to further fold back.

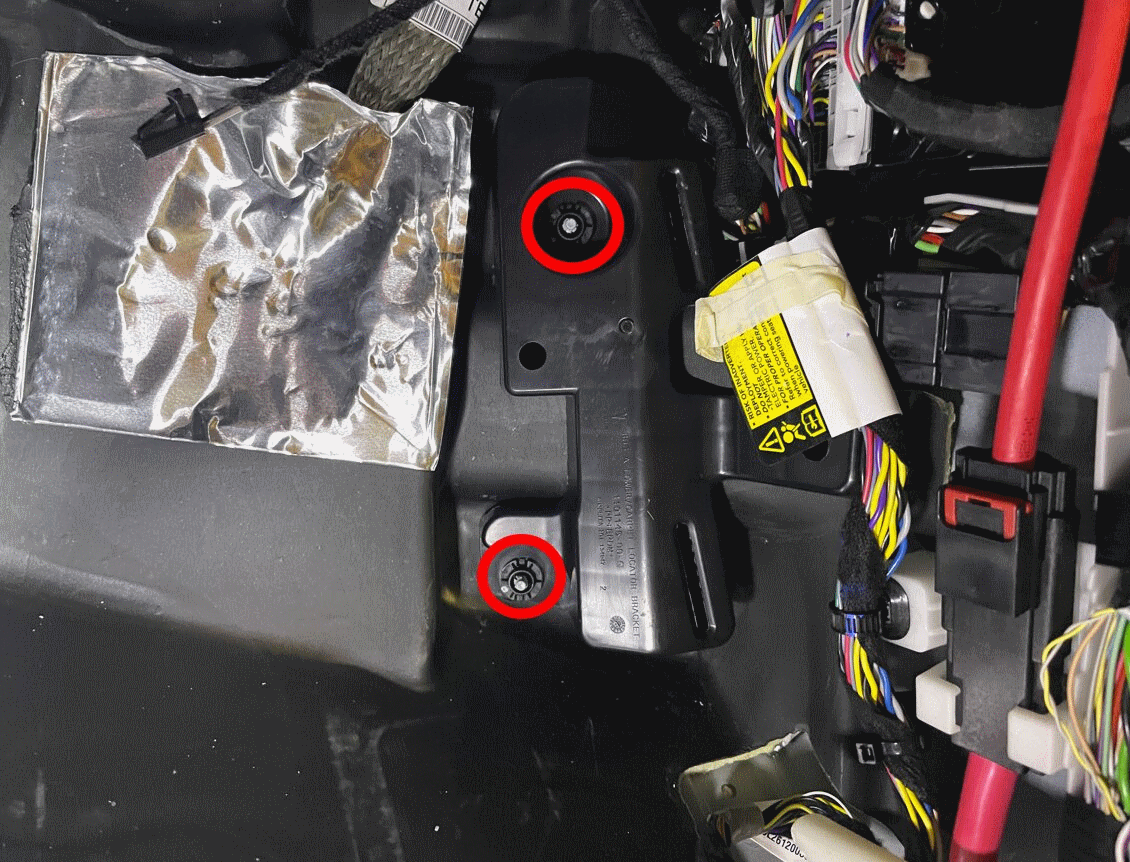

  17. Remove the nuts (x2) that attach the RH side carpet locator bracket.
    NOTE: Later vehicles may use 2x push clips instead.
    G00651868Courtesy of TESLA, INC.
  18. Release the connector lock, and then disconnect the J7 door electrical connector from the RH body controller module.
    G14743977Courtesy of TESLA, INC.

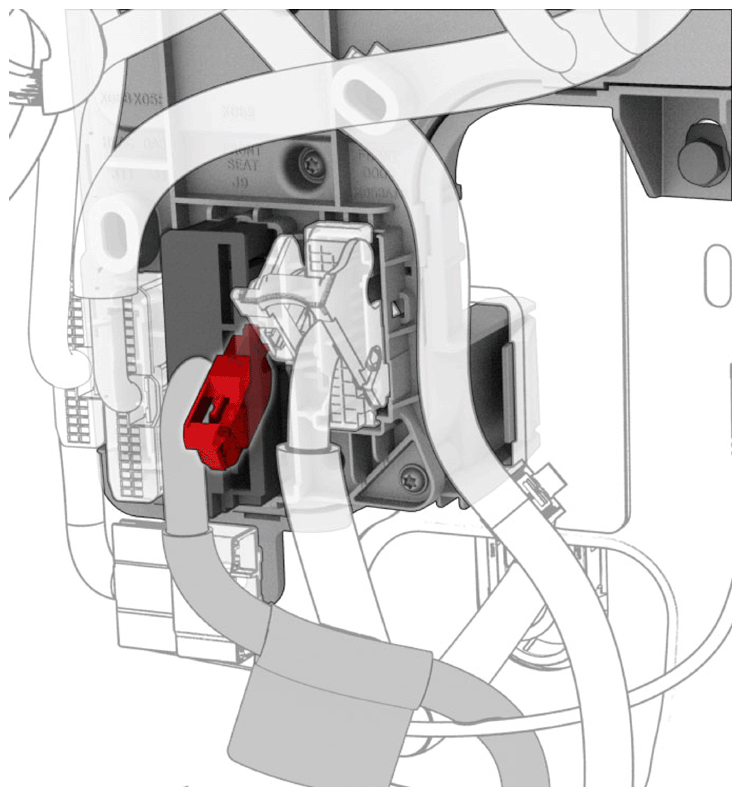

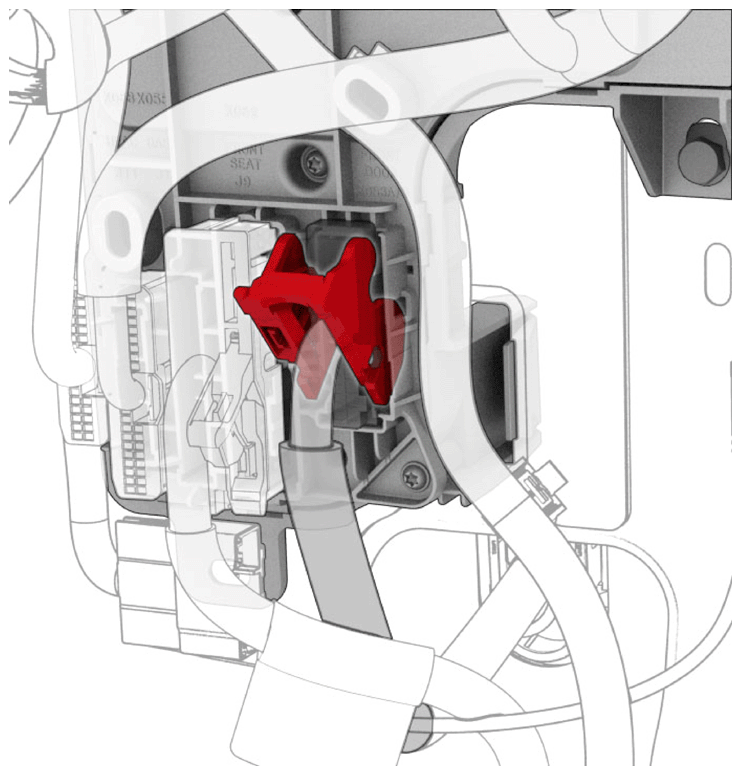

  19. Release the connector lock, and then disconnect the J9 front passenger seat electrical connector from the RH body controller module.
    G14743978Courtesy of TESLA, INC.

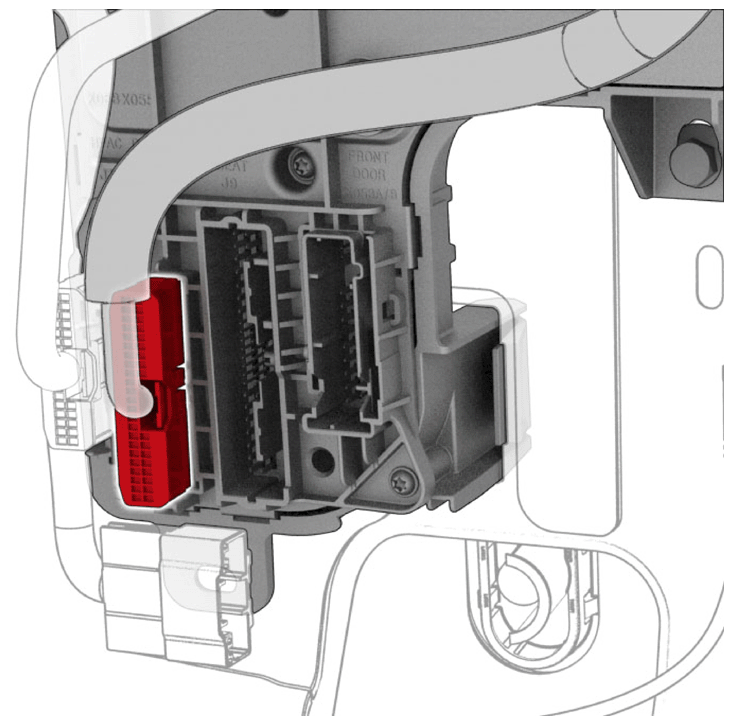

  20. Disconnect the J10 instrument panel electrical connector from the RH body controller module.
    G14743979Courtesy of TESLA, INC.

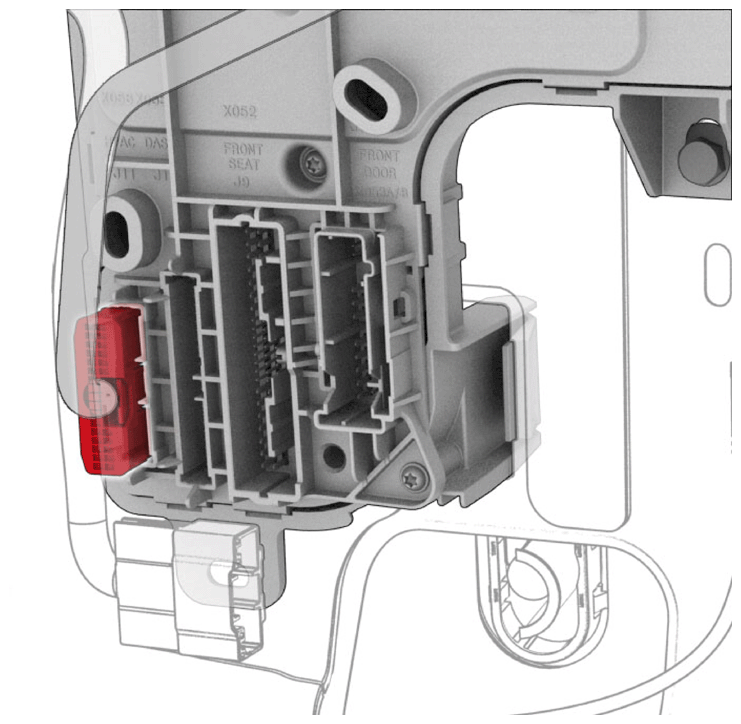

  21. Disconnect the J11 HVAC electrical connector from the RH body controller module.
    G14743980Courtesy of TESLA, INC.

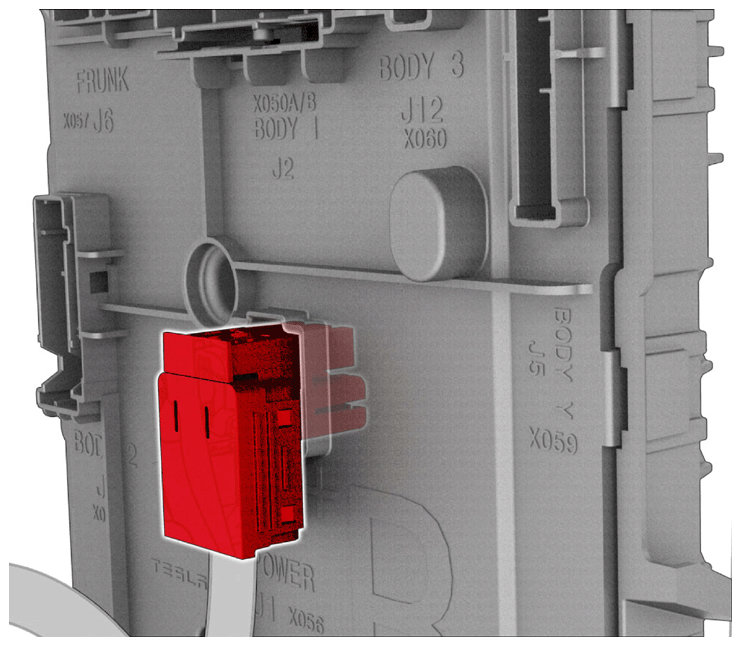

  22. Release the connector lock, and then disconnect the J1 power electrical connector from the RH body controller module.
    G14743975Courtesy of TESLA, INC.

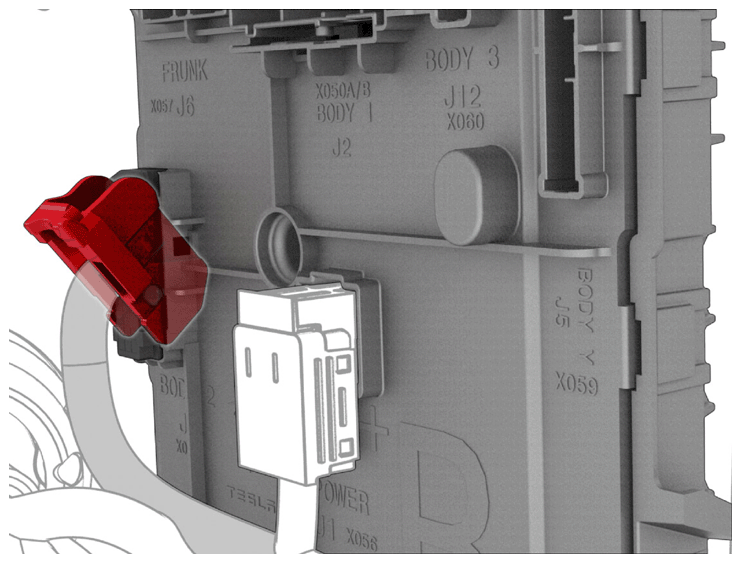

  23. Release the connector lock, and then disconnect the J4 body electrical connector from the RH body controller module.
    G14743974Courtesy of TESLA, INC.

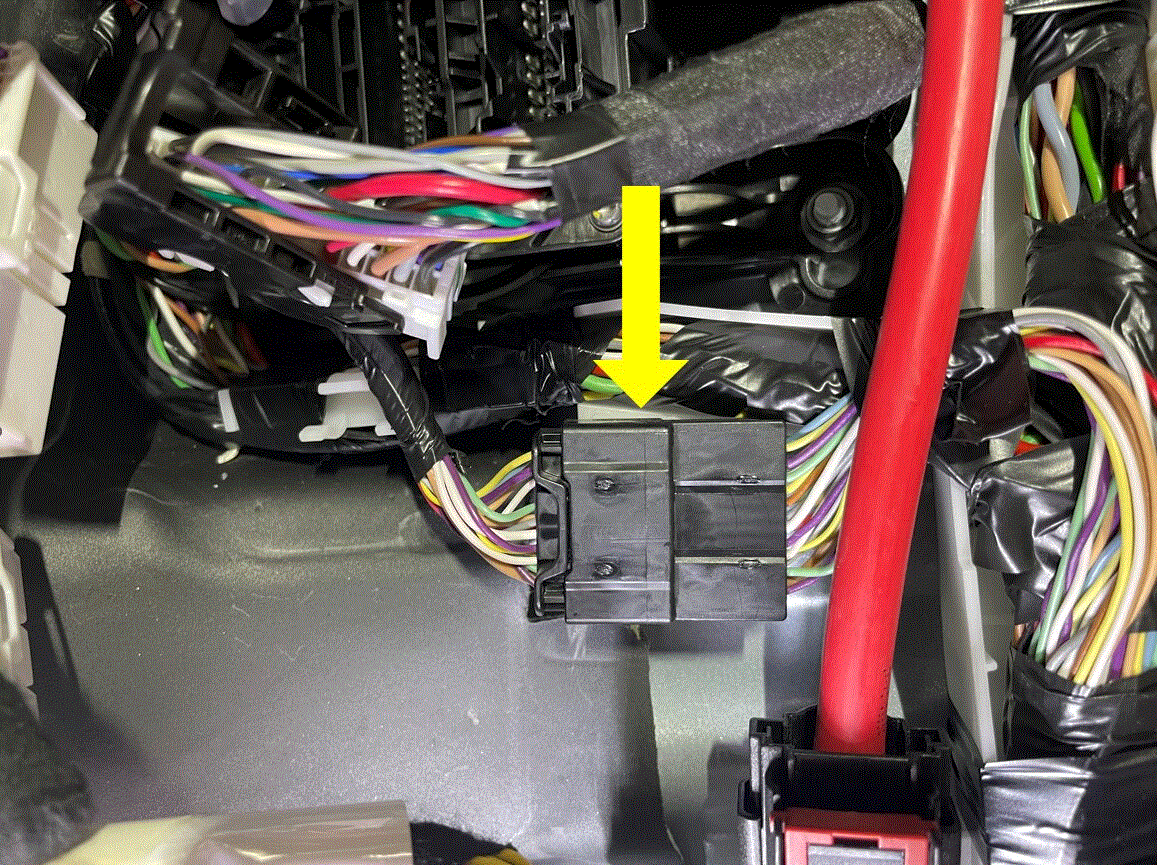

  24. Disconnect the RH body harness connector.
    G00621765Courtesy of TESLA, INC.

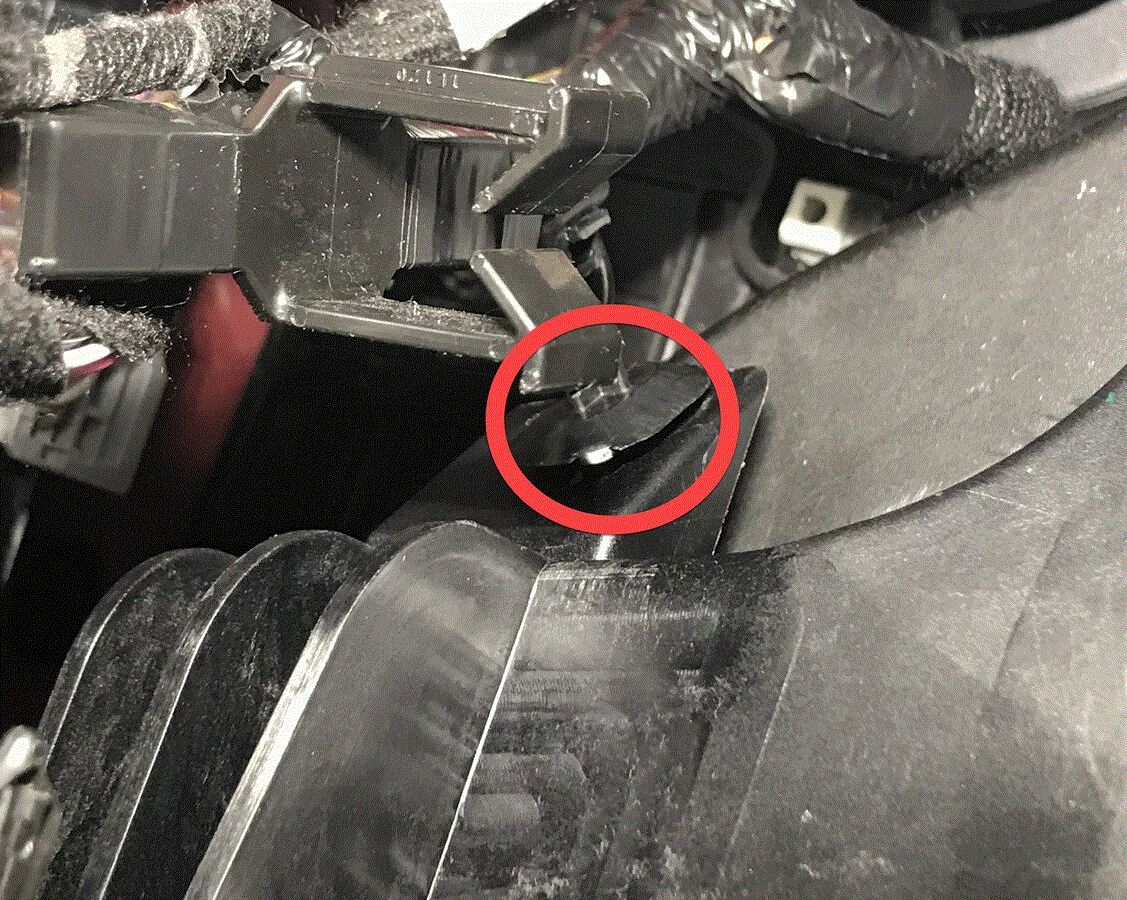

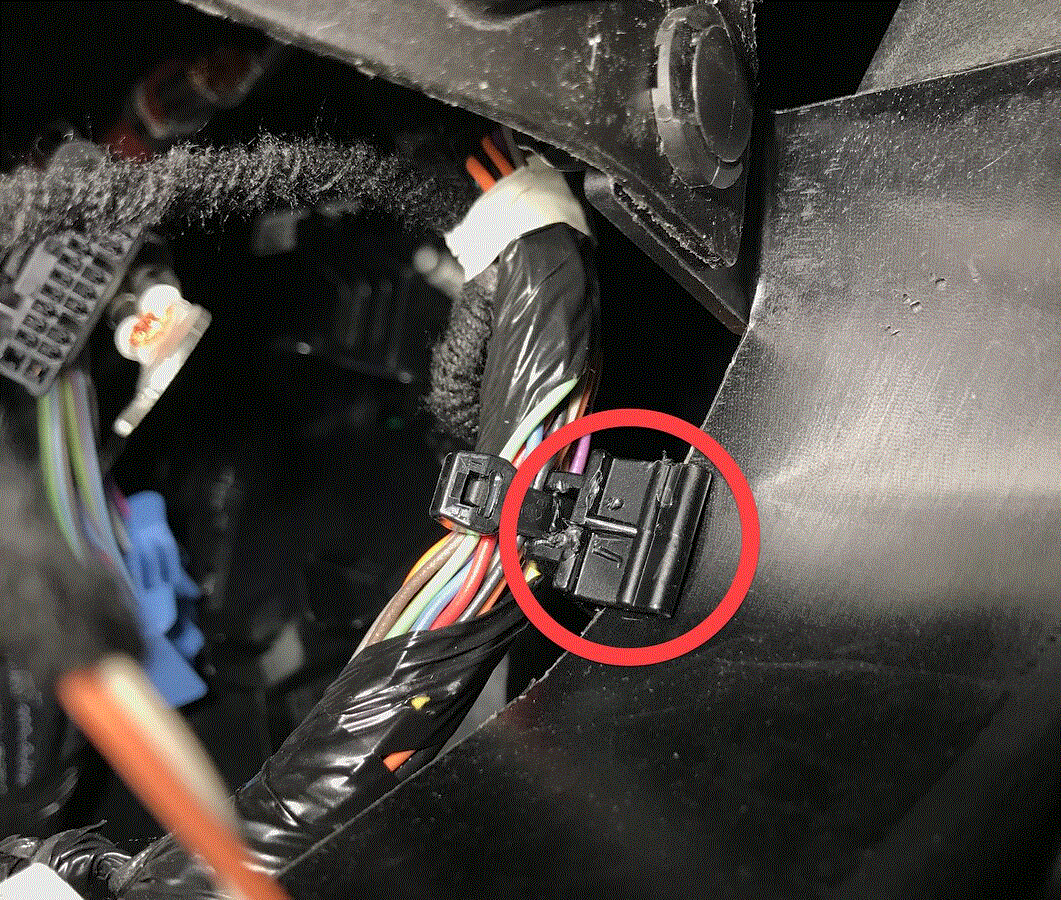

  25. Release the harness clips below the IP carrier.
    G00621766Courtesy of TESLA, INC.
    G00621767Courtesy of TESLA, INC.

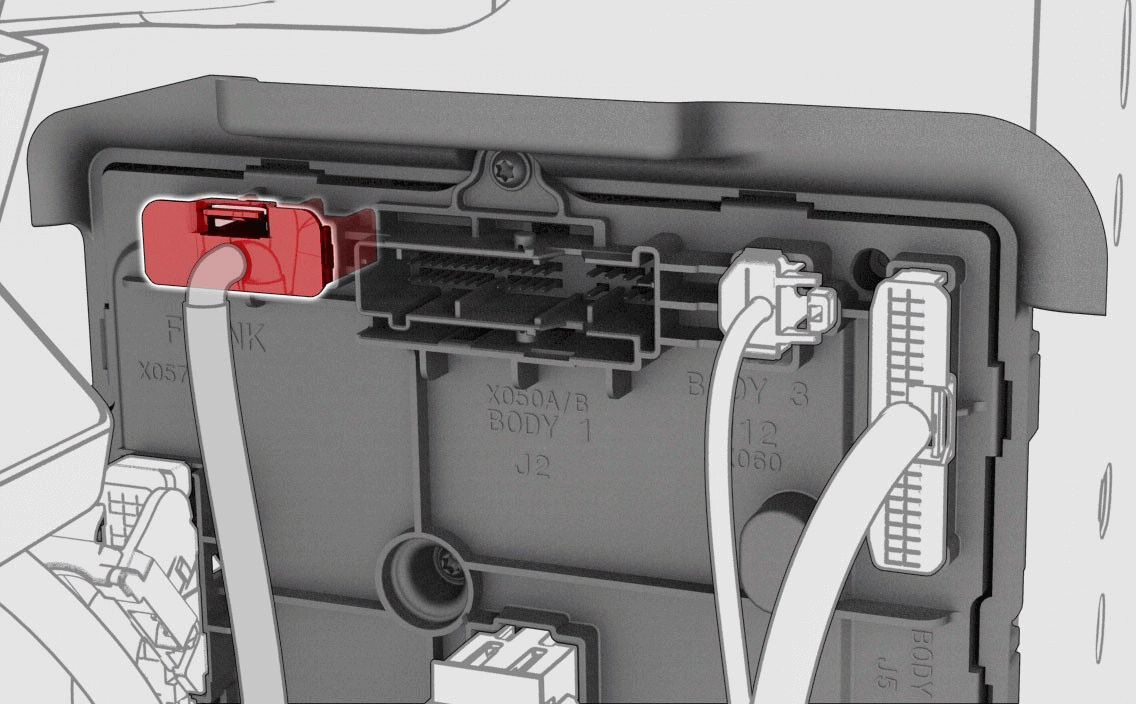

  26. Disconnect the J6 underhood storage unit electrical connector from the RH body controller module.
    G00651827Courtesy of TESLA, INC.

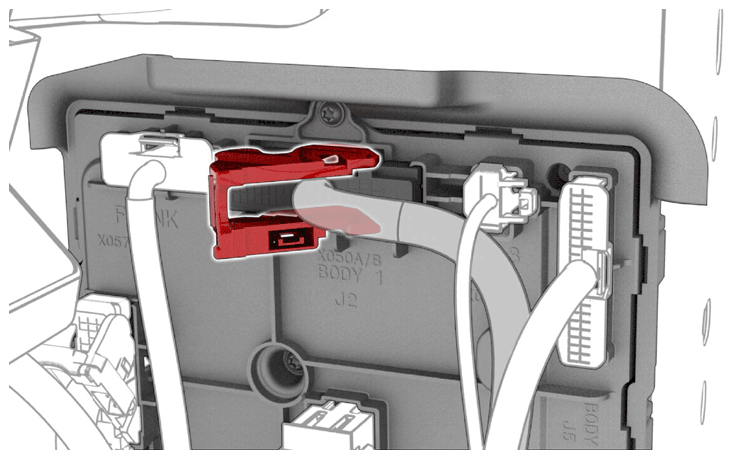

  27. Release the connector lock, and then disconnect the J2 body electrical connector from the RH body controller module.
    G14744002Courtesy of TESLA, INC.

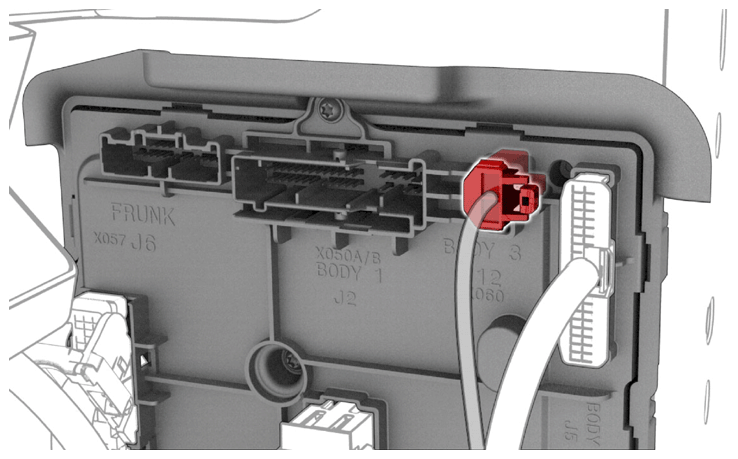

  28. Disconnect the J12 body electrical connector from the RH body controller module.
    G14744000Courtesy of TESLA, INC.

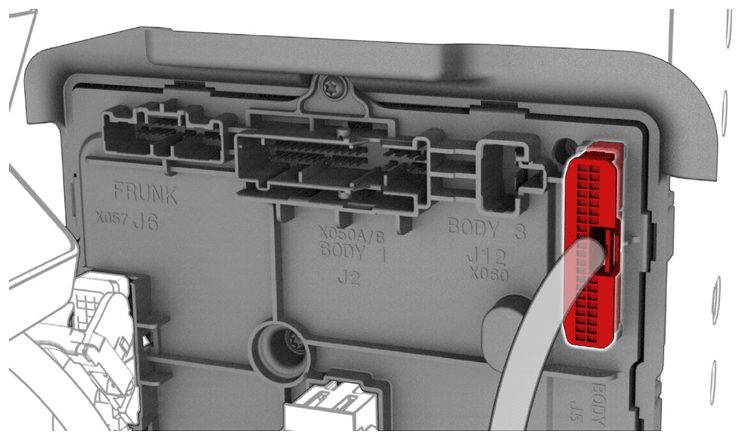

  29. Disconnect the J5 body electrical connector from the RH body controller module.
    G14743999Courtesy of TESLA, INC.

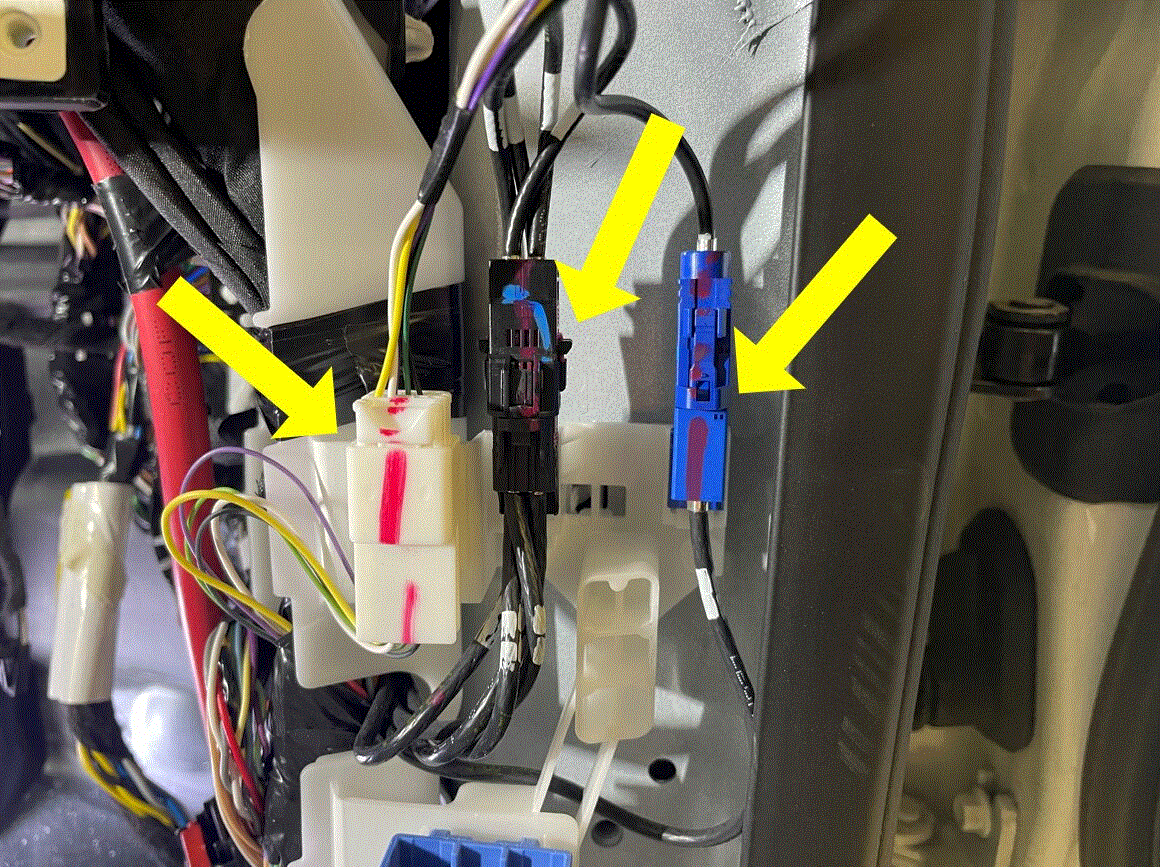

  30. Disconnect the connectors from the harness clip at the RH lower A-pillar area.
    G00621768Courtesy of TESLA, INC.

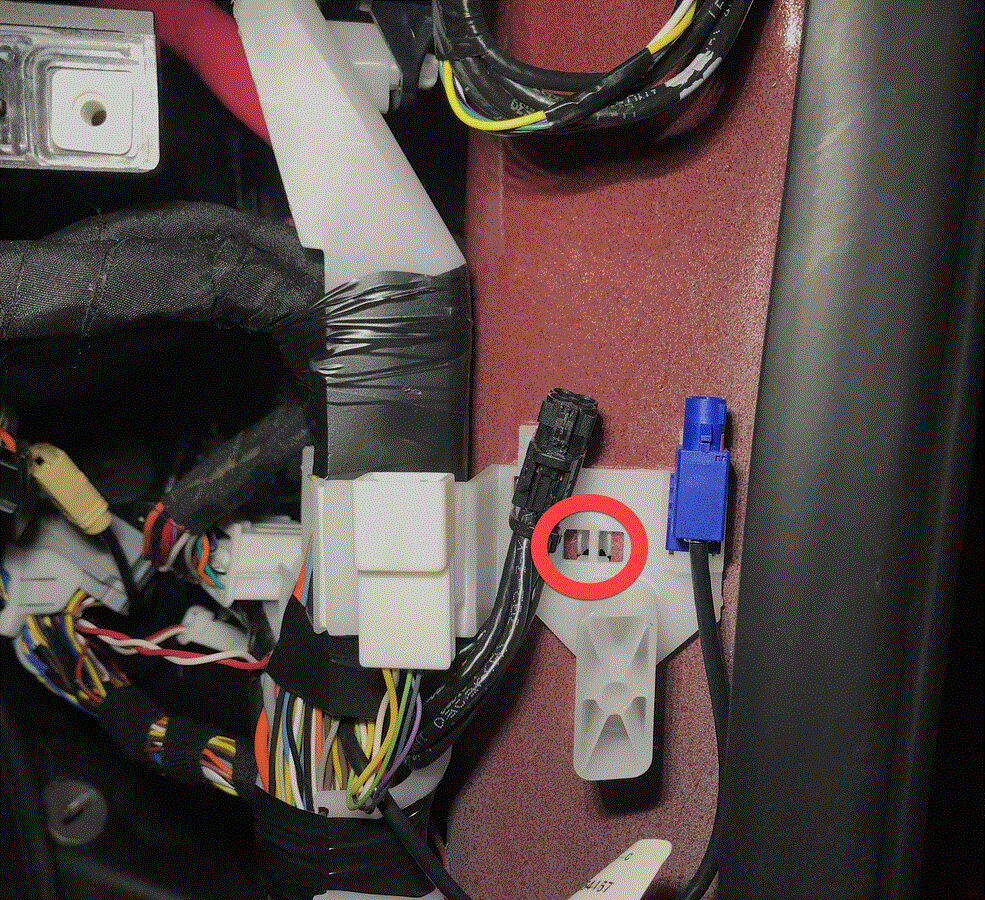

  31. Remove the RH body harness clip from the lower A-pillar area.
    G00621769Courtesy of TESLA, INC.

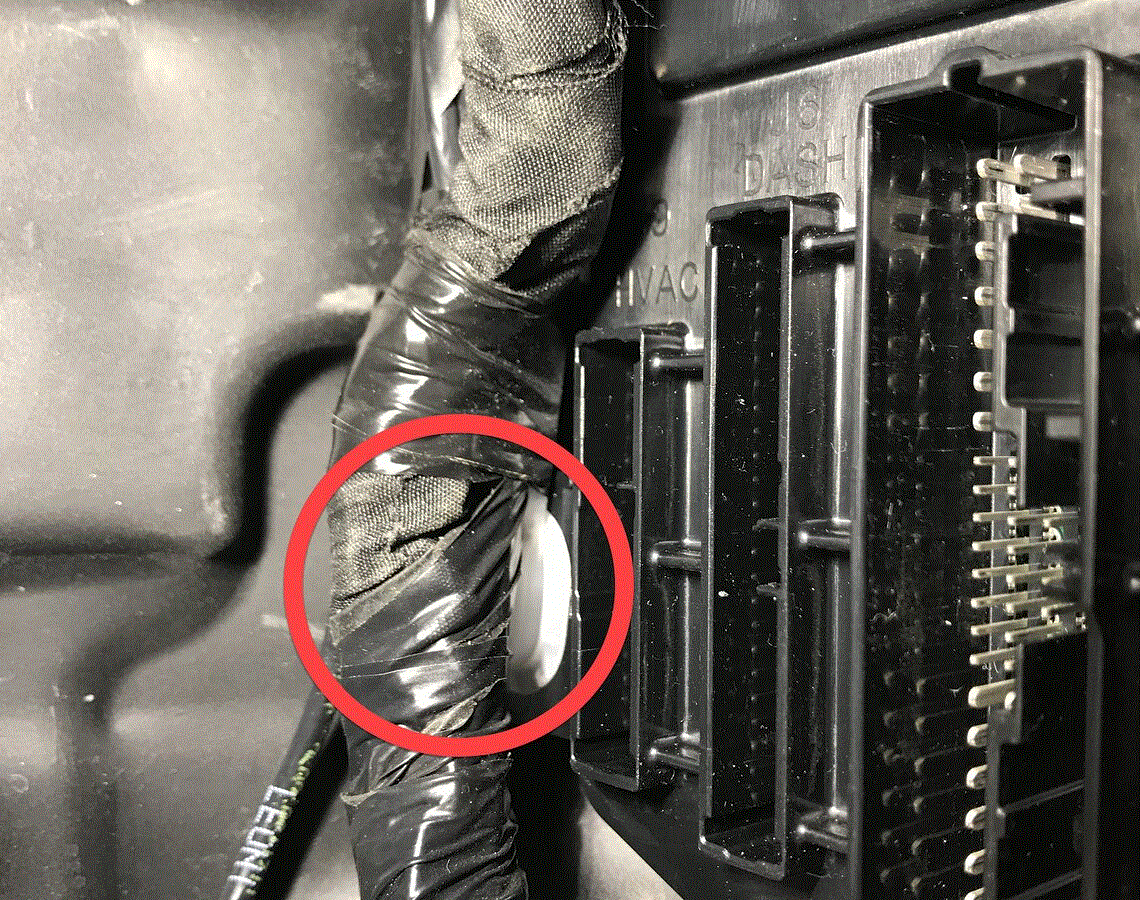

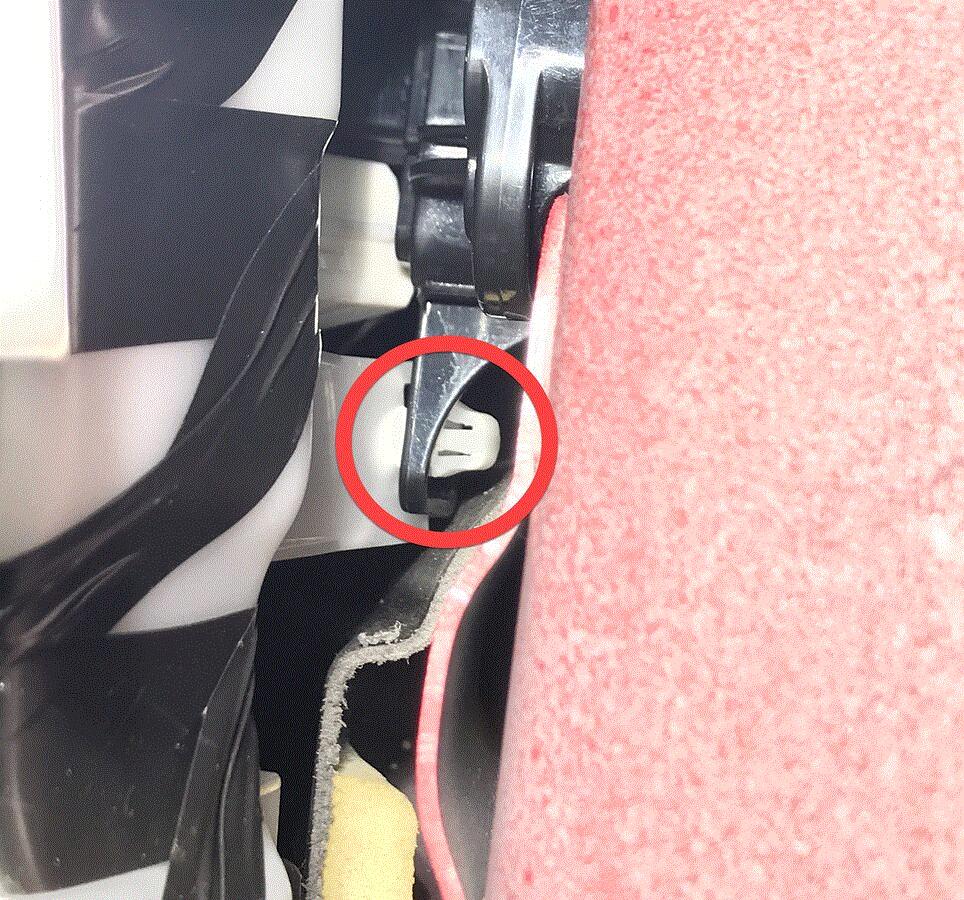

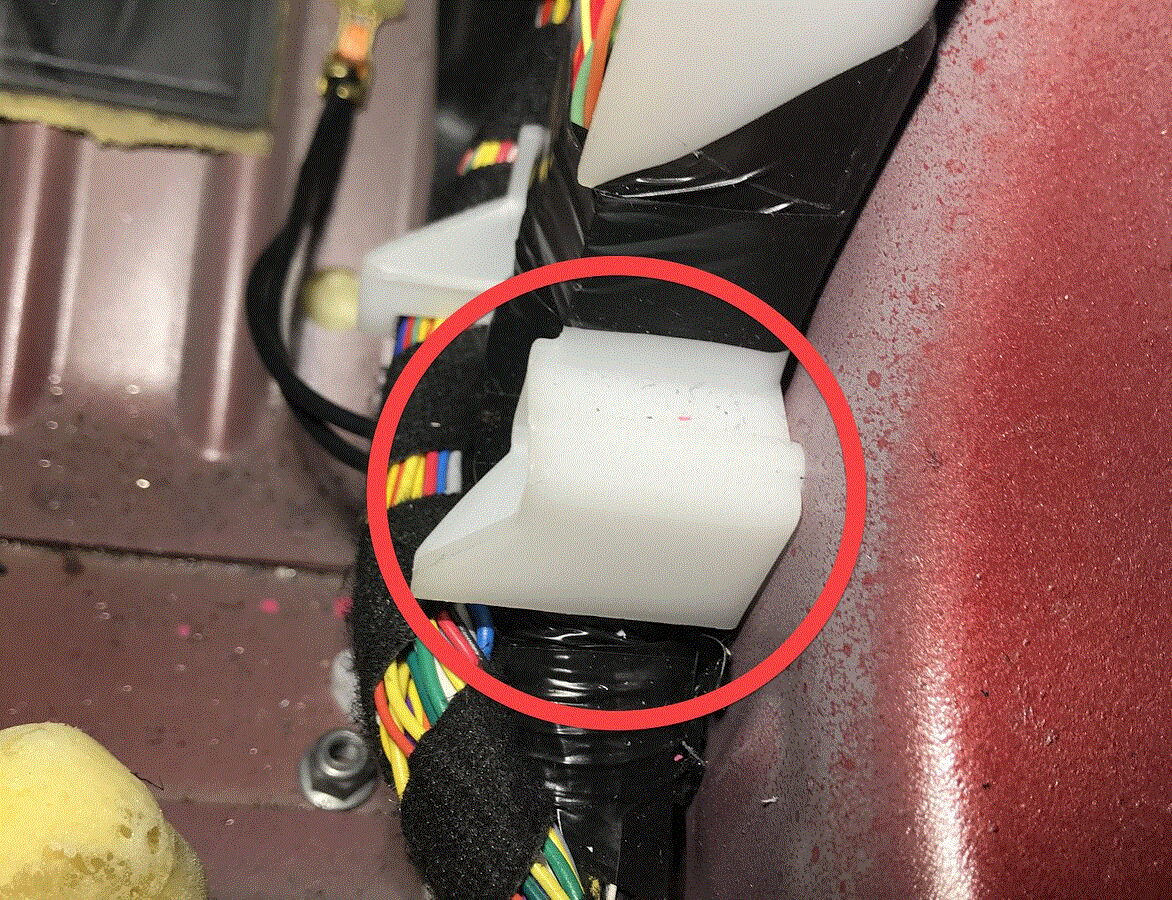

  32. Remove the RH body harness clips from the RH body controller module.
    G00621770Courtesy of TESLA, INC.
    G00621771Courtesy of TESLA, INC.
    G00621772Courtesy of TESLA, INC.
  33. Move the RH body harness away from the RH body controller module.

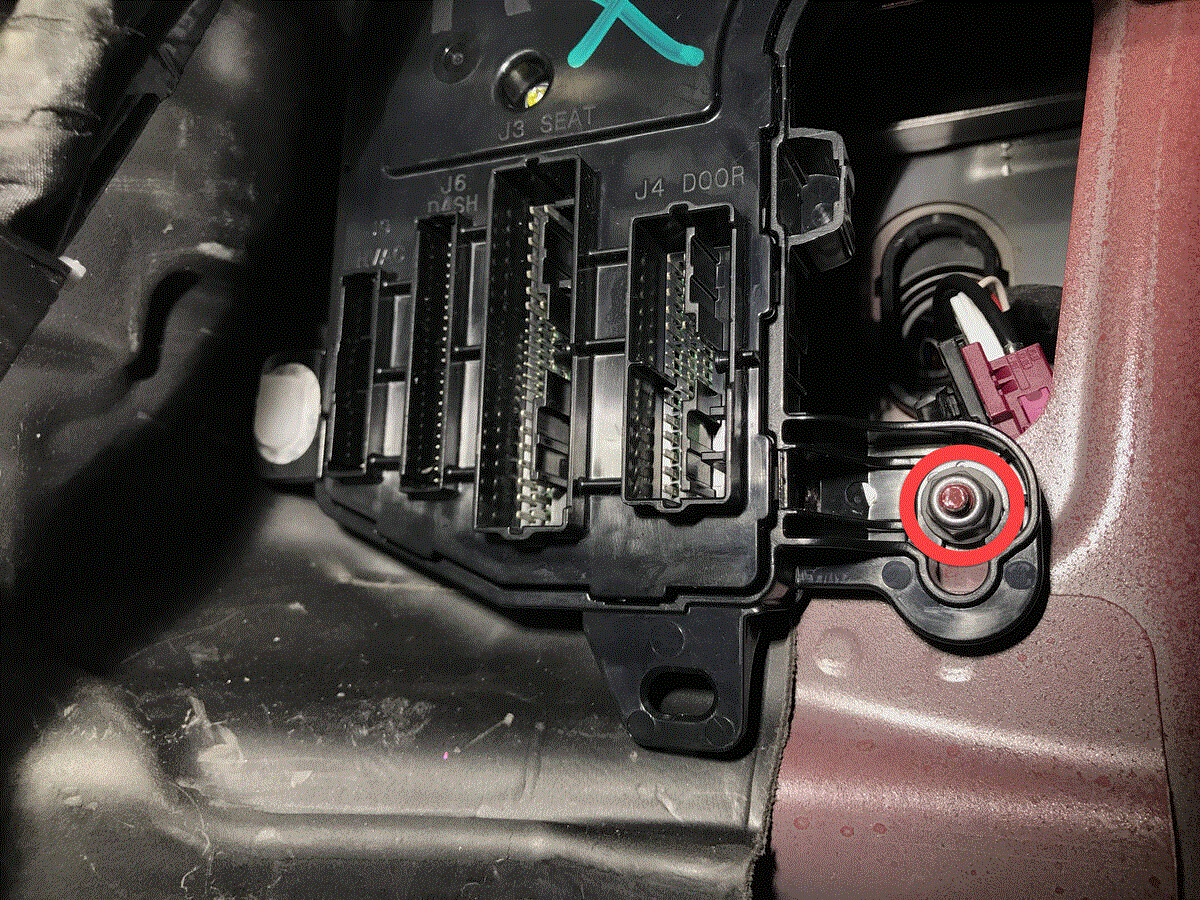

  34. Remove and discard the nyloc nut that attaches the RH body controller module to the vehicle.
    G00621775Courtesy of TESLA, INC.

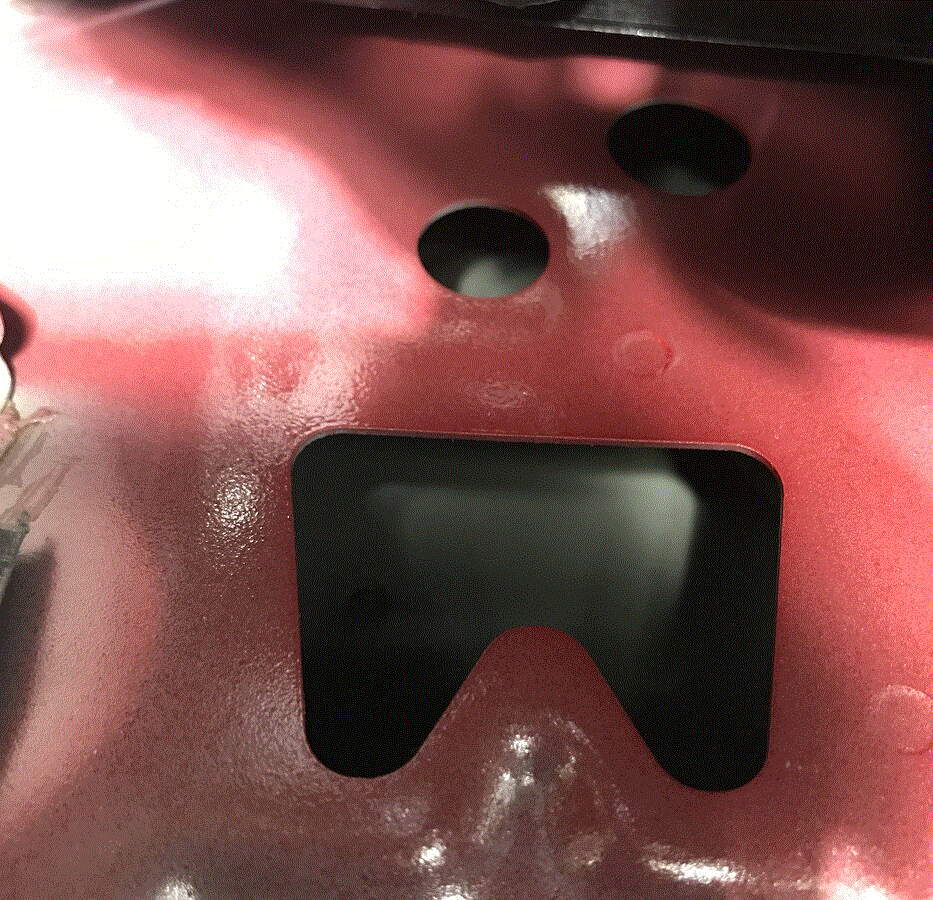

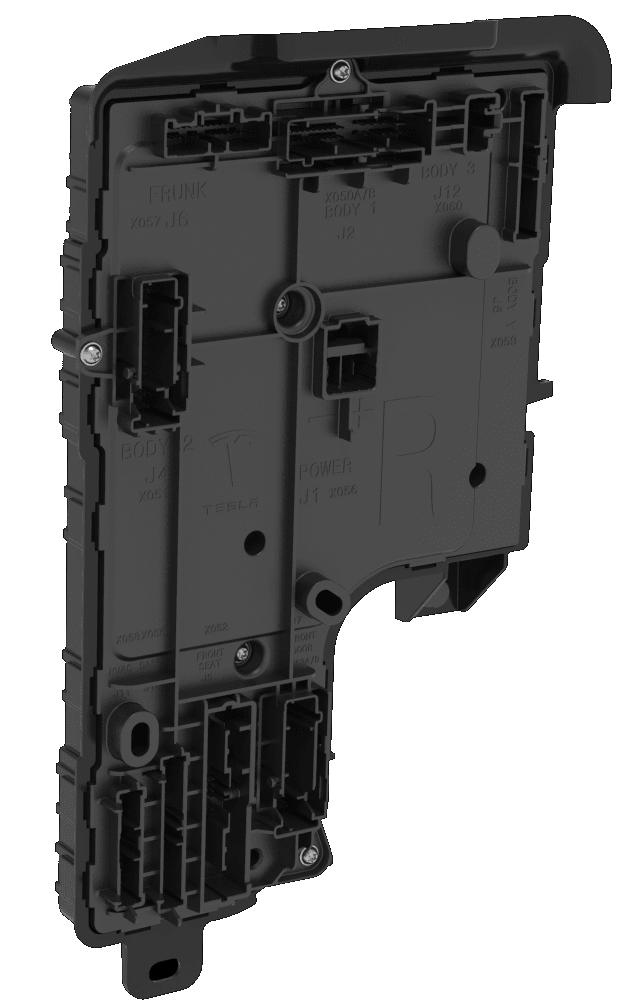

  35. Slide the RH body controller module upwards to release the W clip, maneuver the RH body controller module out from under the IP, and then remove the RH body controller module from the vehicle.

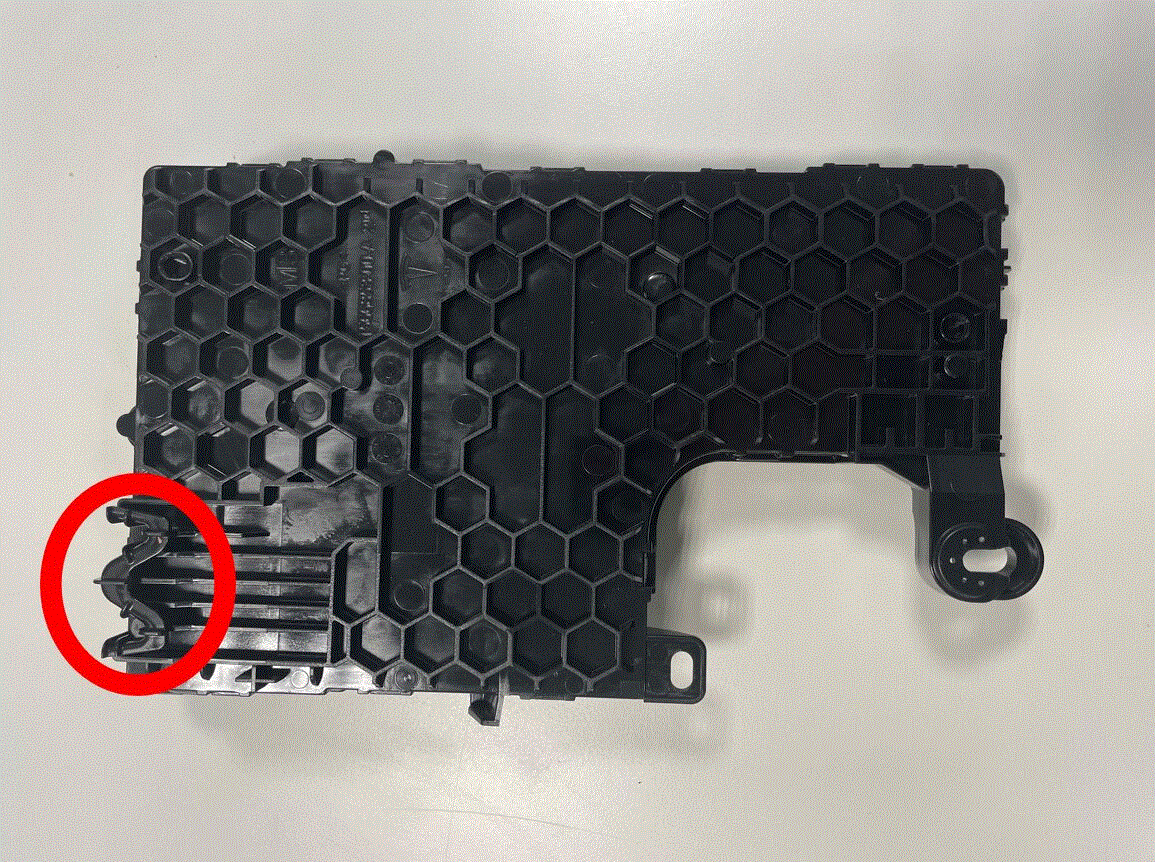

    G00621773Courtesy of TESLA, INC.
    G00621774Courtesy of TESLA, INC.
    G14743987Courtesy of TESLA, INC.
