Harness - Front Drive Unit - Remove And Replace: Removal
- Remove the HEPA filter outlet duct, see Duct - HEPA Filter - Outlet (Remove and Replace)
.
- Remove the underhood storage unit, see Underhood Storage Unit (Remove and Install)
.
- Disconnect 12V power, see DISCONNECT 12V POWER .
- Remove the 12V battery bracket beam, see 12V BATTERY BRACKET BEAM (REMOVE AND REPLACE) .

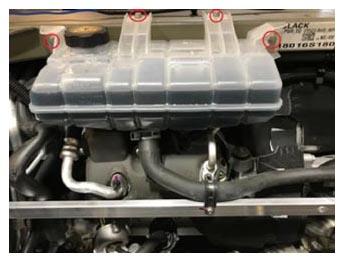

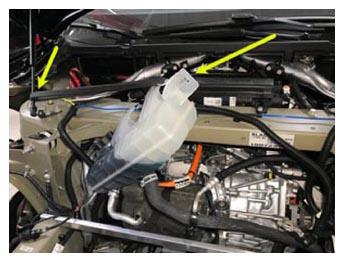

- Remove the bolts (x4) that attach the coolant reservoir to the shock tower cross member (torque 6 N.m).
 Courtesy of TESLA, INC.
|

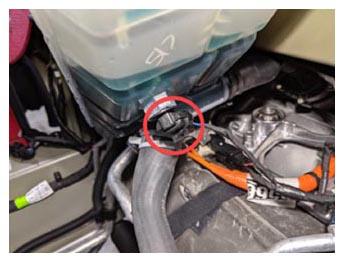

- Disconnect the coolant reservoir level sensor connector.
 Courtesy of TESLA, INC.
|
- Shift the coolant reservoir out of the way to gain access to the components behind.
 Courtesy of TESLA, INC.
|

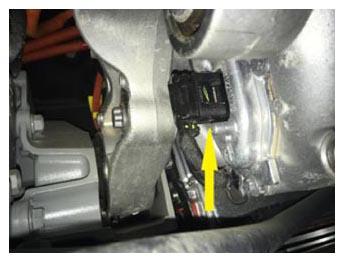

- Disconnect the FDU resolver connector.
 Courtesy of TESLA, INC.
|

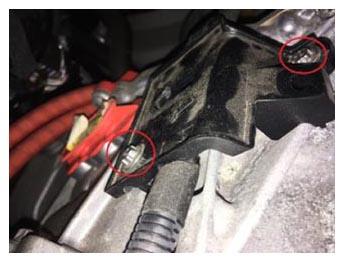

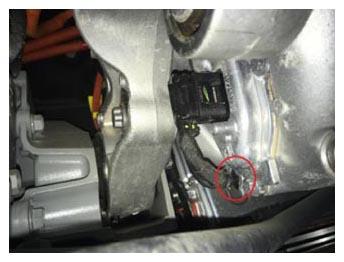

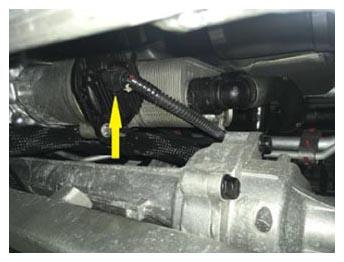

- Release the fir tree clip from the FDU enclosure.
 Courtesy of TESLA, INC.
|

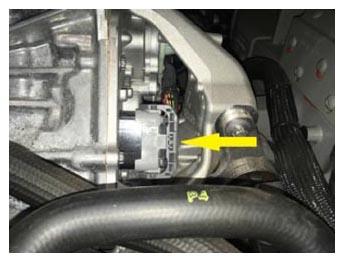

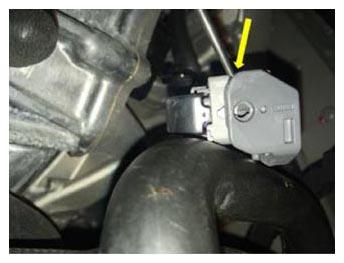

- Disconnect the front drive unit oil pump connector.
 Courtesy of TESLA, INC.
|

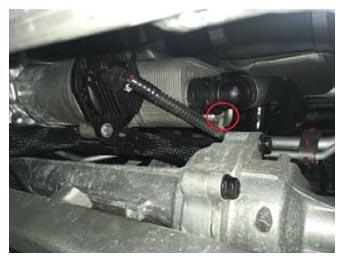

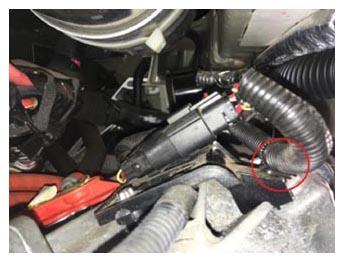

- Release the fir tree clip from the oil chiller.
 Courtesy of TESLA, INC.
|

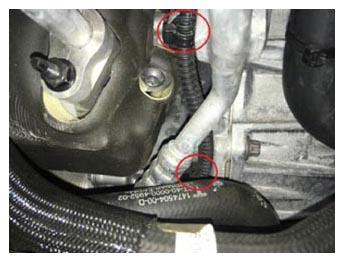

- Release the fir tree clips (x2) located next to the A/C compressor.
 Courtesy of TESLA, INC.
|

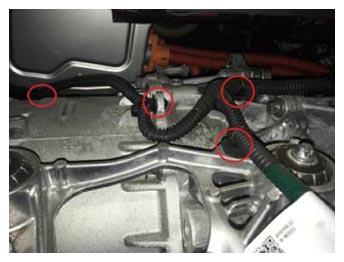

- Release the fir tree clips located on top of the drive unit.
NOTE:
4x fir tree clip
 Courtesy of TESLA, INC.
|

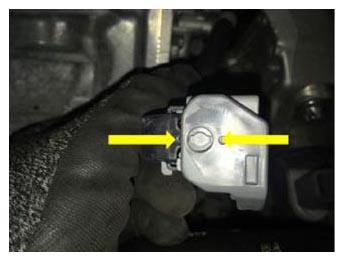

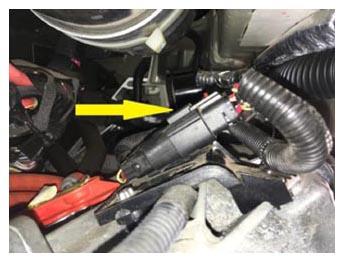

- Disconnect the FDU inverter connector.
 Courtesy of TESLA, INC.
|

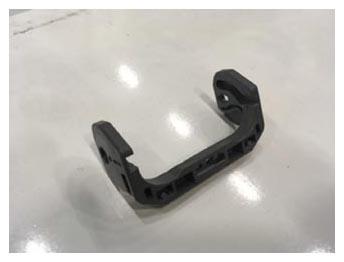

- Remove the FDU inverter connector latching mechanism from the connector.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

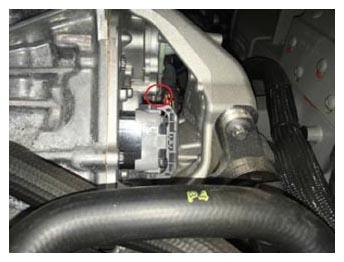

- Release the fir tree clip next to FDU inverter connector.
 Courtesy of TESLA, INC.
|
- Remove the edge clip securing the FDU logic harness to the connector bracket.
 Courtesy of TESLA, INC.
|
- Disconnect the FDU logic connector and set the harness aside.
 Courtesy of TESLA, INC.
|
- Remove the bolts (x2) that attach the FDU harness bracket (torque 5 N.m + 20 deg.).
 Courtesy of TESLA, INC.
|

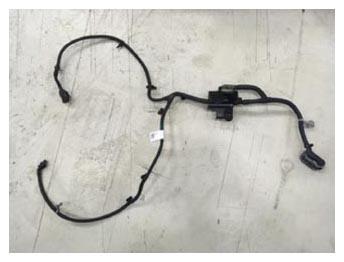

- Remove the FDU harness from the vehicle.
 Courtesy of TESLA, INC.
|
