Module - Liftgate Control - Remove And Replace: Removal

  1. Remove the RH side trunk trim Trim - Rear Trunk - Side - RH (Remove And Replace) .

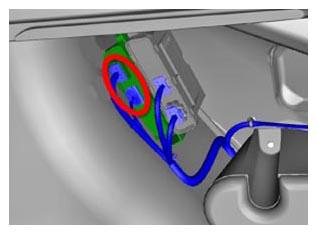

  2. Disconnect the harness connectors (x2) from the electric park brake (EPB) module.
    G14975041Courtesy of TESLA, INC.

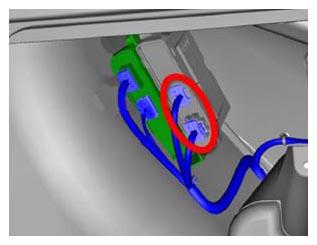

  3. Disconnect the harness connections (x2) from the liftgate control module.
    G14975042Courtesy of TESLA, INC.

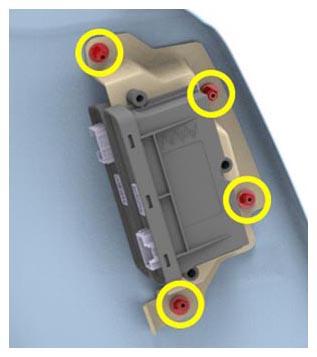

  4. Remove the nuts (x4) that secure the bracket to the wheelhouse studs (torque 3 N.m/2.21 ft-lbs.).
    G14975043Courtesy of TESLA, INC.
  5. Remove the bracket and modules assembly.

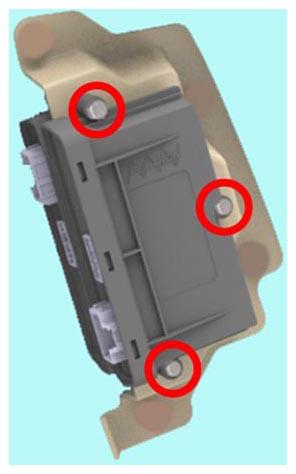

  6. Remove the nuts and bolts (x3) that secure the modules to the bracket (torque 2 N.m/1.47 ft-lbs.).
    CAUTION: Replace all patchbolt(s).
    G14975044Courtesy of TESLA, INC.

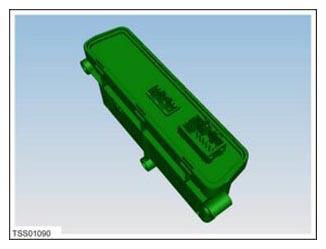

  7. Remove the liftgate control module from the bracket.
    G14975045Courtesy of TESLA, INC.
