Nozzle - Windshield Washer Jet - Remove And Replace: Removal

  1. Remove the hood acoustic panel Acoustic Panel - Hood (Remove And Replace) .

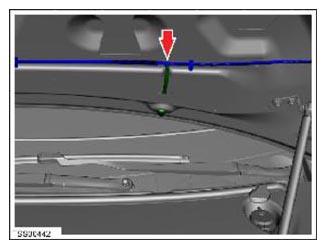

  2. Disconnect the washer jet pipe from the T-piece.
    G15035203Courtesy of TESLA, INC.

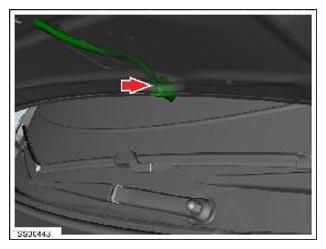

  3. Release the clip that secures the washer jet to the hood. Remove the washer jet from the hood.
    G15035204Courtesy of TESLA, INC.
  4. Disconnect the washer pipe from the washer jet.
    G15035205Courtesy of TESLA, INC.
