1st Generation RWD: Removal

LHD vehicles only: Remove the pollen filter rear housing:

If equipped, release the 2 barrel clips that secure the HV harness to the bulkhead.

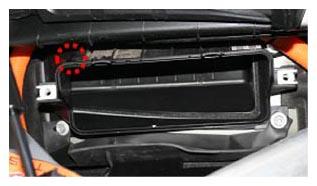

Loosen the top right nut that secures the pollen filter rear housing to the bulkhead (torque 6 N.m).

NOTE: It is not necessary to completely remove the nut; the tab on the housing is notched.

Courtesy of TESLA, INC.

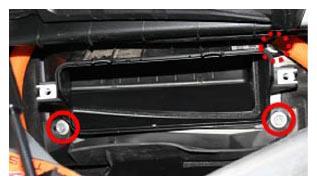

Remove the remaining nuts (x3) that secure the pollen filter rear housing to the bulkhead (torque 6 N.m).

NOTE: The 2 lower nuts secure the HVAC intake drain diverter.

Courtesy of TESLA, INC.

RHD vehicles only: Pull back the LH front upper wheel arch liner for access Wheel Arch Liner - Front - LH (Remove And Replace) .
NOTE: The wheel arch liner does not need to be completely removed.

Remove the nuts (x2) that secure the fuse box cover (torque 3 N.m).

LHD	RHD (View from underhood, components removed for clarity)	RHD (View from wheel well)
Courtesy of TESLA, INC.	Courtesy of TESLA, INC.	Courtesy of TESLA, INC.

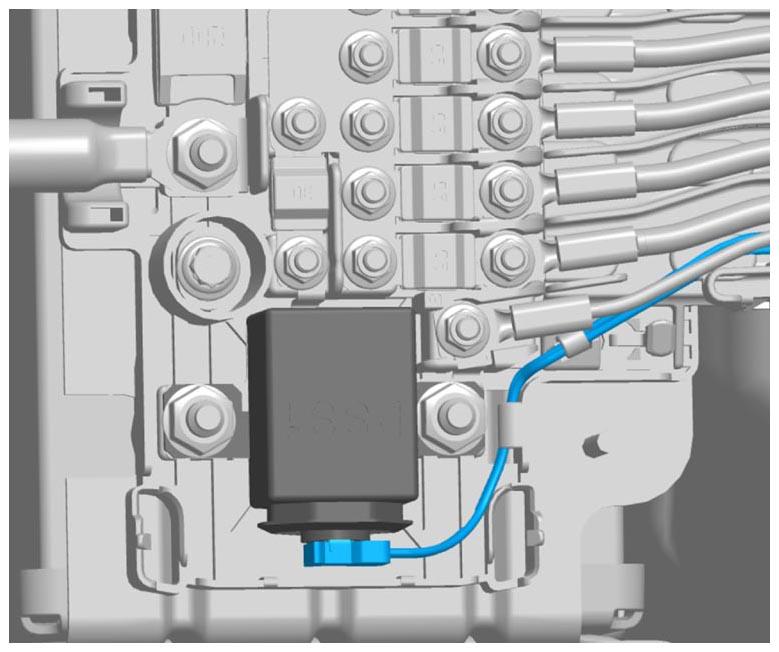

Disconnect the pyrotechnic battery disconnect harness.

Courtesy of TESLA, INC.

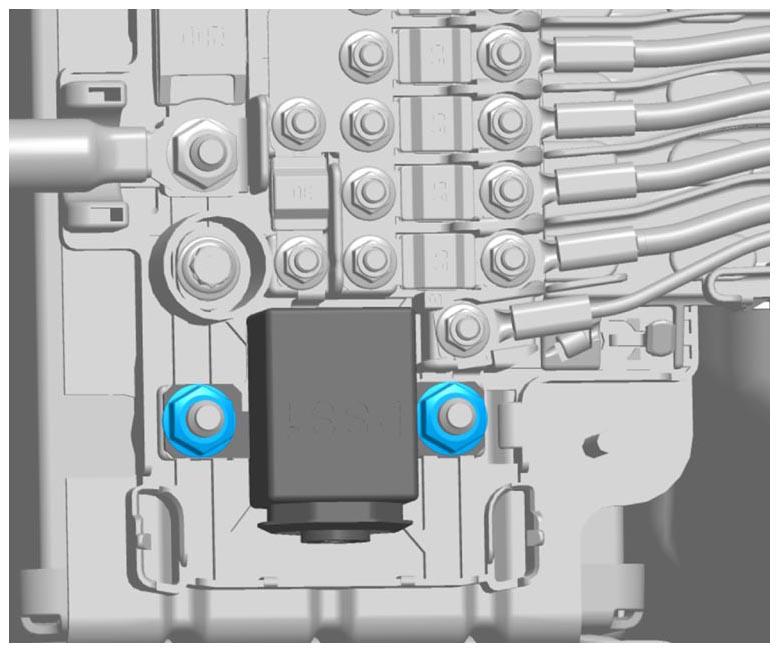

Remove the nuts (x2) that secure the pyrotechnic battery disconnect (torque 12 N.m).

Courtesy of TESLA, INC.
Remove the pyrotechnic battery disconnect from the vehicle.
