1st Generation Dual Motor/2nd Generation: Removal

  1. Disconnect 12V power. See DISCONNECT 12V POWER .

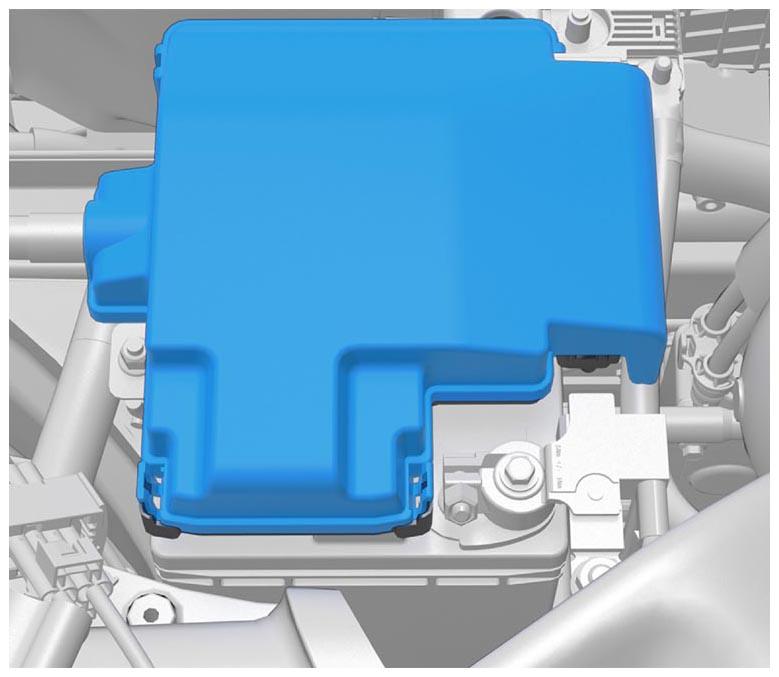

  2. Remove the fuse box cover.
    G15035232Courtesy of TESLA, INC.

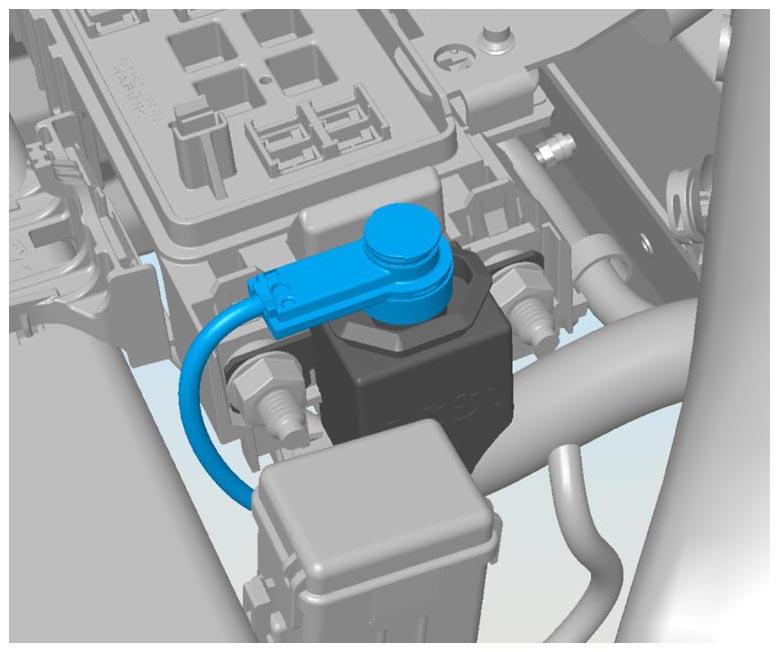

  3. Disconnect the pyrotechnic battery disconnect harness.
    G15035233Courtesy of TESLA, INC.

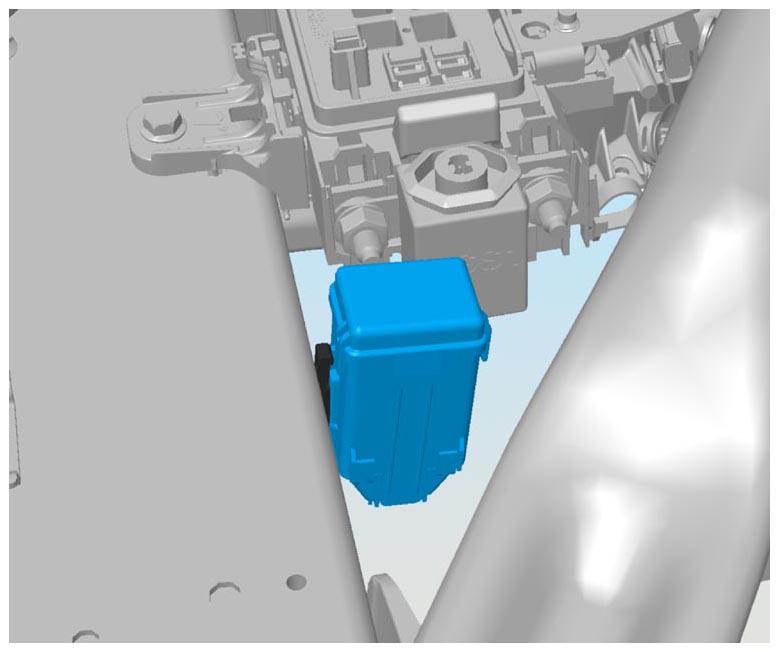

  4. Release the relay holder from the bracket and move it out of the working area.
    G15035234Courtesy of TESLA, INC.

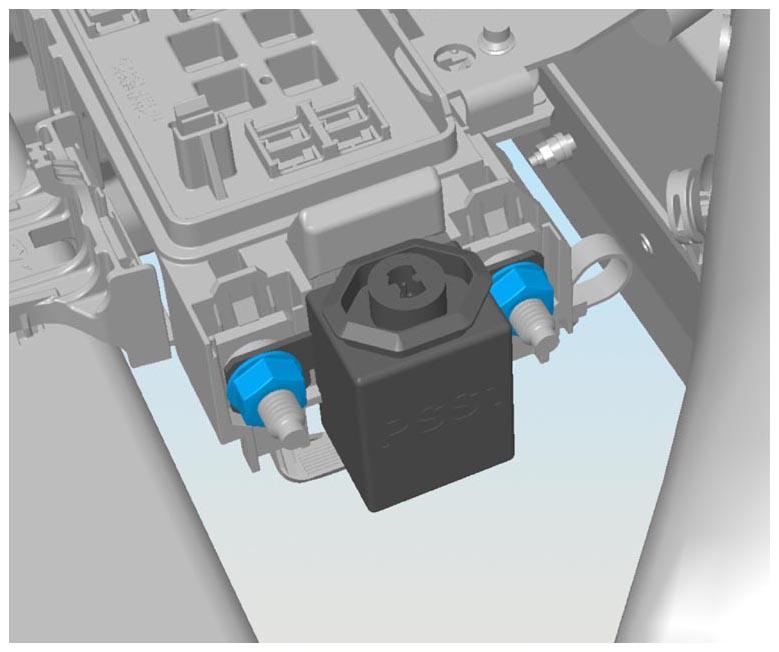

  5. Remove the nuts (x2) that secure the pyrotechnic battery disconnect (torque 15 N.m).
    G15035235Courtesy of TESLA, INC.
  6. Remove the pyrotechnic battery disconnect from the vehicle.
