Oscilloscope display

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Shown below is typical waveform display provided by oscilloscope.

NOTE:
  • Display includes the following types of data:

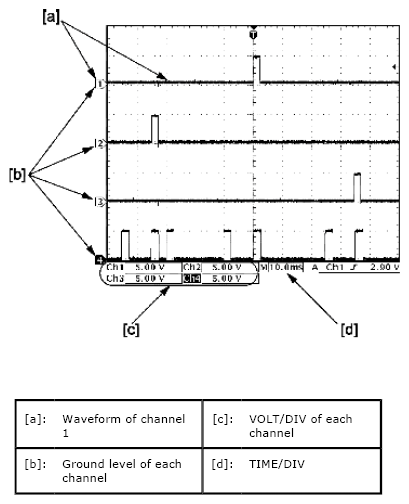

    Fig 1: Typical Waveform Graph
    G06528465Courtesy of SUZUKI OF AMERICA CORP.
  • Waveforms may vary with measurement conditions and vehicle specifications.
