A-10 4WD Control System Circuit Diagram

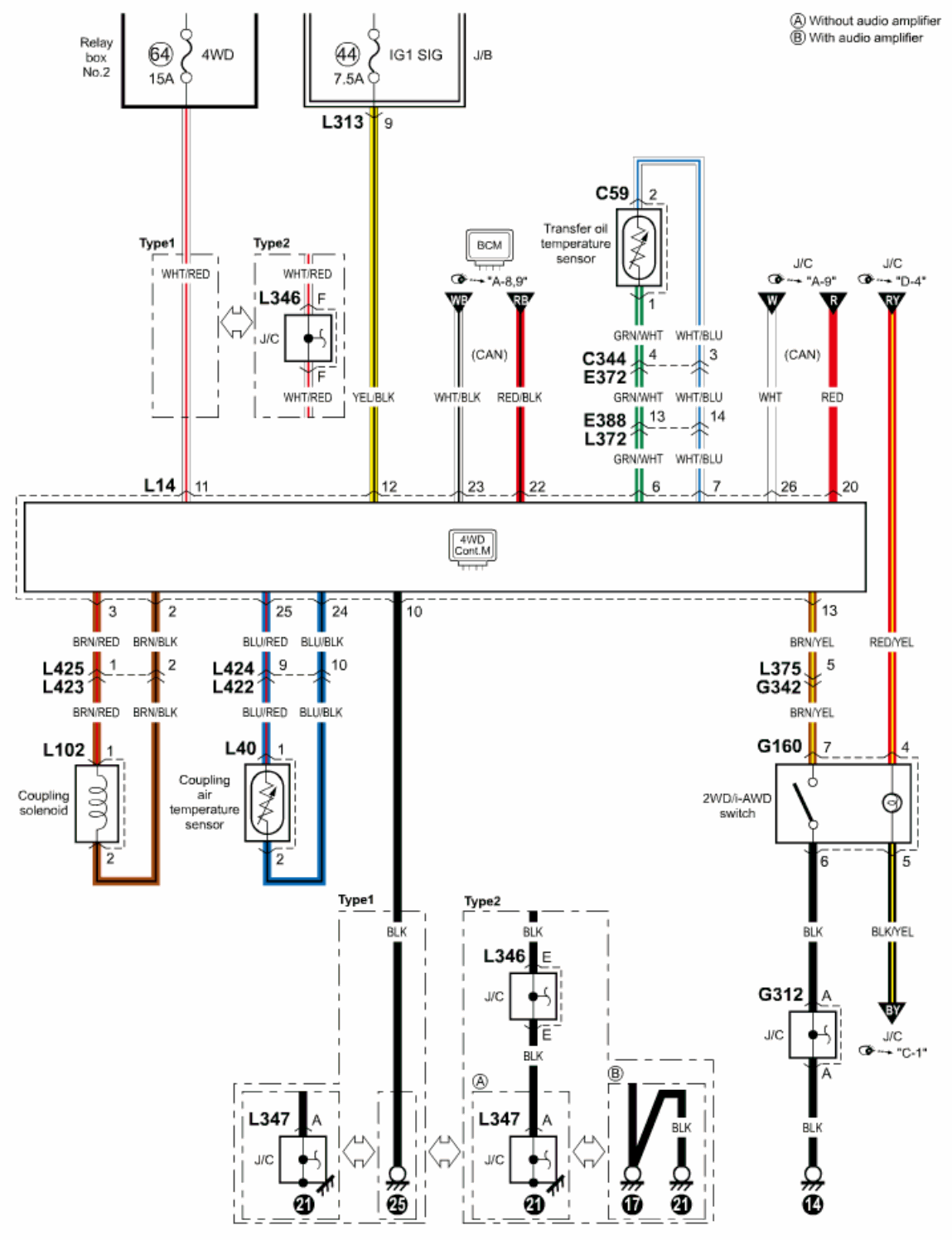

Fig 1: 4WD Control System Circuit Diagram

G00519744

Courtesy of SUZUKI OF AMERICA CORP.
