Home >> Suzuki >> 2013 >> Kizashi Base, Standard Trans >> Repair and Diagnosis >> Body & Frame >> Glass/Windows/Mirrors >> Repair Instructions >> Rear Door Components

Rear Door Components

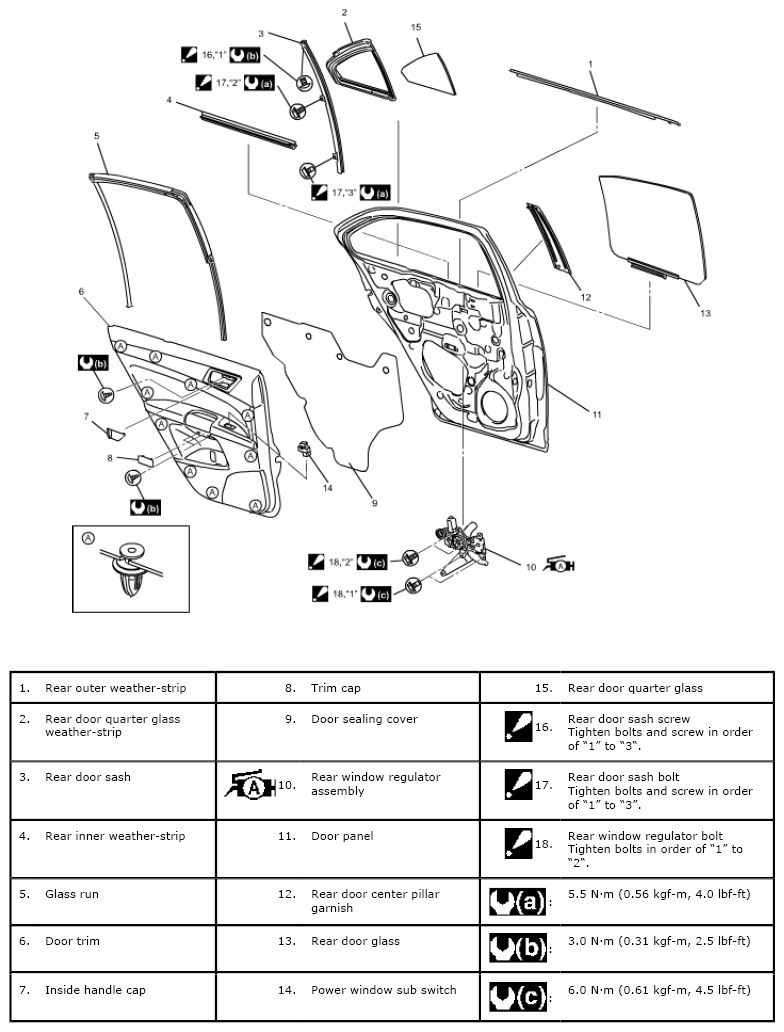

Fig 1: Rear Door Replacement Components With Torque Specifications

G06529146

Courtesy of SUZUKI OF AMERICA CORP.
