Front Suspension Frame Components

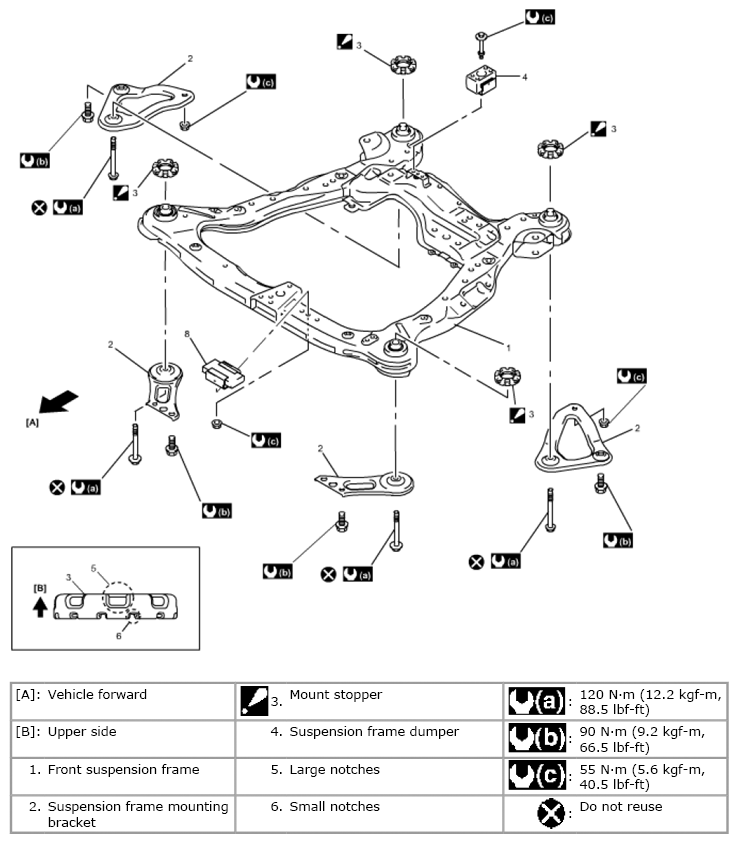

Fig 1: Front Suspension Frame Replacement Components With Torque Specifications

G06529911

Courtesy of SUZUKI OF AMERICA CORP.
