Oil Pump: Notes

Check outer rotor (1), inner rotor (2), oil pump cover and oil pump housing for excessive wear or damage.

Fig 1: Identifying Outer Rotor And Inner Rotor
Courtesy of SUZUKI OF AMERICA CORP.

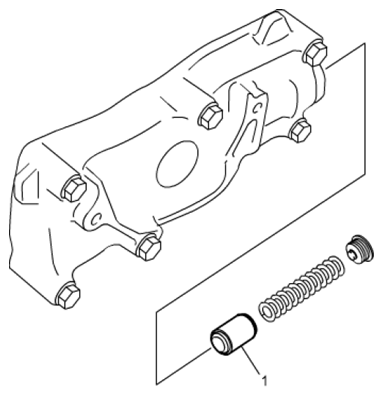

Check relief valve (1) for smooth moving and any damage.

Fig 2: Identifying Relief Valve
Courtesy of SUZUKI OF AMERICA CORP.
