Front Suspension Frame, Stabilizer Bar and/or Bush Components

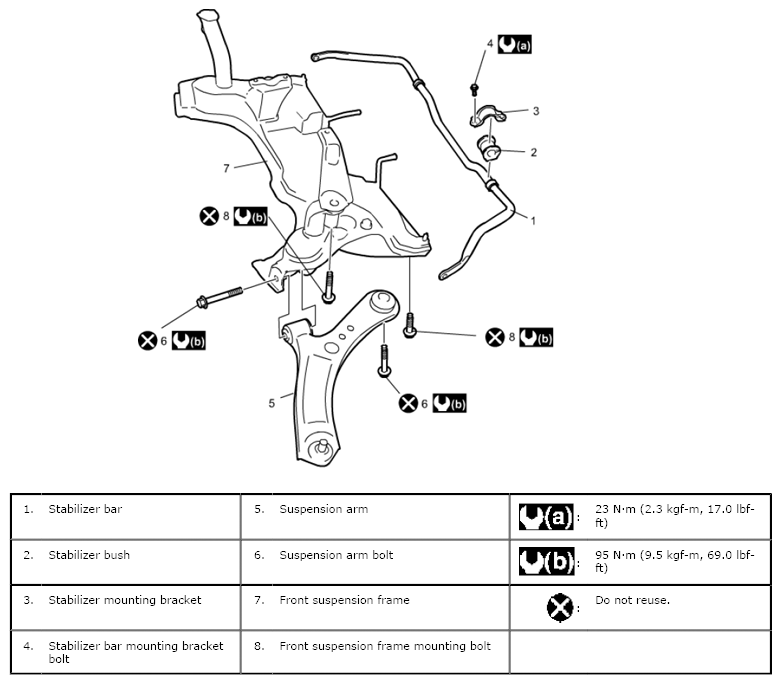

Fig 1: Identifying Front Suspension Frame, Stabilizer Bar And/Or Bush Components

G06867353

Courtesy of SUZUKI OF AMERICA CORP.
