Mass Air Flow (MAF) & Intake Air Temperature (IAT) Sensor Removal and Installation: Installation
Reference: MASS AIR FLOW (MAF) & INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION
Reverse removal procedure noting the following.
- Tighten MAF & IAT sensor screws to specified torque.
Tightening torque

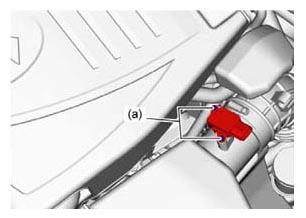

MAF & IAT sensor screw (a): 1.2 N.m (0.12 kg-m, 0.9 lbf-ft)
