Switch for other window than driver side

  1. Remove driver side door trim referring to step 1) to 3) of FRONT DOOR GLASS REMOVAL AND INSTALLATION .
  2. Remove power window main switch from door trim.
  3. Check for continuity between terminals as shown in figure below.

If check result is not as specified, replace power window main switch.

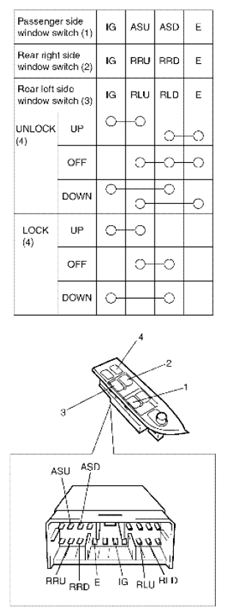

Fig 1: Inspecting Power Window Main Switch
G06868878Courtesy of SUZUKI OF AMERICA CORP.
