Precautions for Electrical Circuit Service: Notes

When replacing a fuse, make sure to use a fuse of the specified capacity. Use of a fuse with a larger capacity will cause a damage to the electrical parts and a fire.

Fig 1: Precautions For Electrical Parts
Courtesy of SUZUKI OF AMERICA CORP.

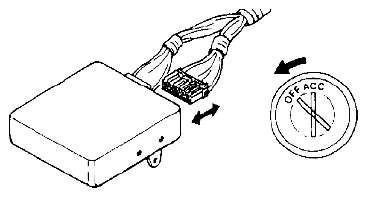

When disconnecting and connecting coupler, make sure to turn ignition switch OFF, or electronic parts may get damaged.

Fig 2: Identifying Coupler Connection
Courtesy of SUZUKI OF AMERICA CORP.
When disconnecting connectors, never pull the wiring harness. Unlock the connector lock first and then pull them apart by holding connectors themselves.

Fig 3: Precautions For Wiring Harness (Never Pull)
Courtesy of SUZUKI OF AMERICA CORP.

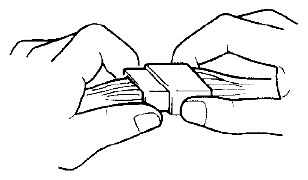

When connecting connectors, also hold connectors and put them together until they lock securely (a click is heard).

Fig 4: Connecting Connector Connection
Courtesy of SUZUKI OF AMERICA CORP.
When installing the wiring harness, fix it with clamps so that no slack is left.

Fig 5: Precautions For Wiring Harness Clamps
Courtesy of SUZUKI OF AMERICA CORP.
When installing vehicle parts, be careful so that the wiring harness is not interfered with or caught by any other part.

Fig 6: Precautions For Vehicle Installation Parts
Courtesy of SUZUKI OF AMERICA CORP.
To avoid damage to the harness, protect its part which may contact against a part forming a sharp angle by winding tape or the like around it.

Fig 7: Precautions For Harness Using Winding Tape
Courtesy of SUZUKI OF AMERICA CORP.

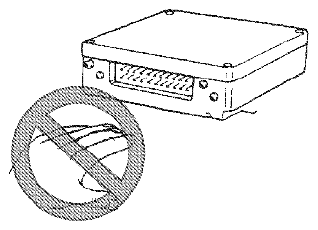

Be careful not to touch the electrical terminals of parts which use microcomputers (e.g. electronic control unit like as ECM, PCM, P/S controller, etc.). The static electricity from your body can damage these parts.

Fig 8: Precautions For Electrical Terminals Of Parts
Courtesy of SUZUKI OF AMERICA CORP.
Never connect any electrical tester (voltmeter, ohmmeter, or whatever) to electronic control unit when its coupler is disconnected. Attempt to do it may cause damage to it.
Never connect an ohmmeter to electronic control unit with its coupler connected to it. Attempt to do it may cause damage to electronic control unit and sensors.
Be sure to use a specified voltmeter/ohmmeter. Otherwise, accurate measurements may not be obtained or personal injury may result. If not specified, use a voltmeter with high impedance (M O/V minimum) or a digital type voltmeter.

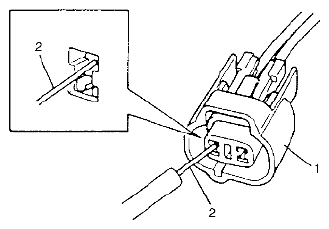

When taking measurements at electrical connectors using a tester probe, be sure to insert the probe (2) from the wire harness side (backside) of the connector (1).

Fig 9: Identifying Wire Harness Side And Connector
Courtesy of SUZUKI OF AMERICA CORP.
When connecting meter probe (2) from terminal side of coupler (1) because it can't be connected from harness side, use extra care not to bend male terminal of coupler of force its female terminal open for connection.
In case of such coupler as shown connect probe as shown to avoid opening female terminal. Never connect probe where male terminal is supposed to fit.

Fig 10: Connecting Meter Probe From Terminal Side Of Coupler
Courtesy of SUZUKI OF AMERICA CORP.
When checking connection of terminals, check its male half for bend and female half for excessive opening and both for locking (looseness), corrosion, dust, etc.
Before measuring voltage at each terminal, check to make sure that battery voltage is 11 V or higher. Such terminal voltage check at low battery voltage will lead to erroneous diagnosis.

Fig 11: Checking Low Battery Voltage
Courtesy of SUZUKI OF AMERICA CORP.
