MAF (Mass Air Flow) and IAT (Intake Air Temperature) Sensor Removal and Installation: Installation

Reference: MAF (MASS AIR FLOW) AND IAT (INTAKE AIR TEMPERATURE) SENSOR INSPECTION

Reverse removal procedure noting the following.

• Tighten MAF and IAT sensor screws (1) to specified torque.

  Tightening torque

  MAF and IAT sensor screw (a): 1.2 N.m (0.12 kgf-m, 0.9 lbf-ft)

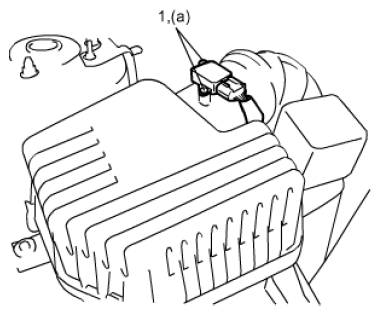

  Fig 1: Identifying MAF And IAT Sensor Screw

  Courtesy of SUZUKI OF AMERICA CORP.
