A-6 A/T Control System Circuit Diagram

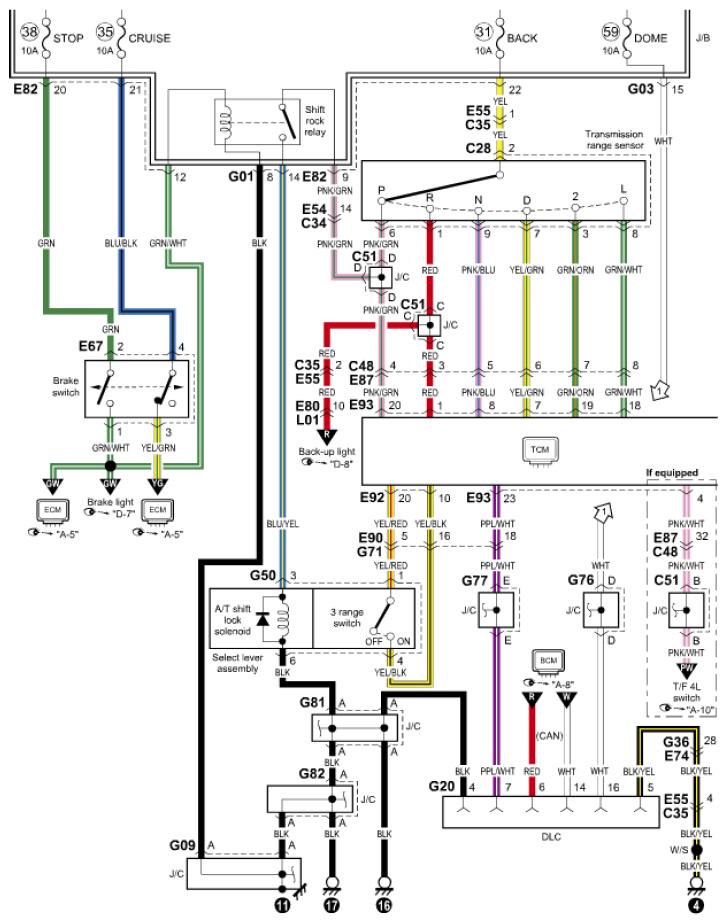

Fig 1: A-6 A/T Control System - Circuit Diagram (1 Of 3)
G08899376Courtesy of SUZUKI OF AMERICA CORP.

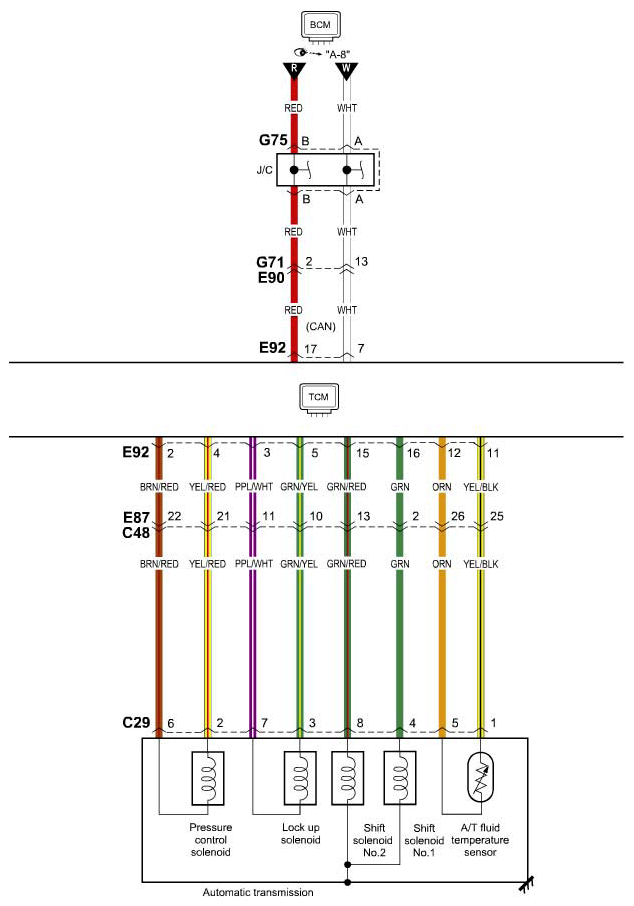

Fig 2: A-6 A/T Control System - Circuit Diagram (2 Of 3)
G08899377Courtesy of SUZUKI OF AMERICA CORP.

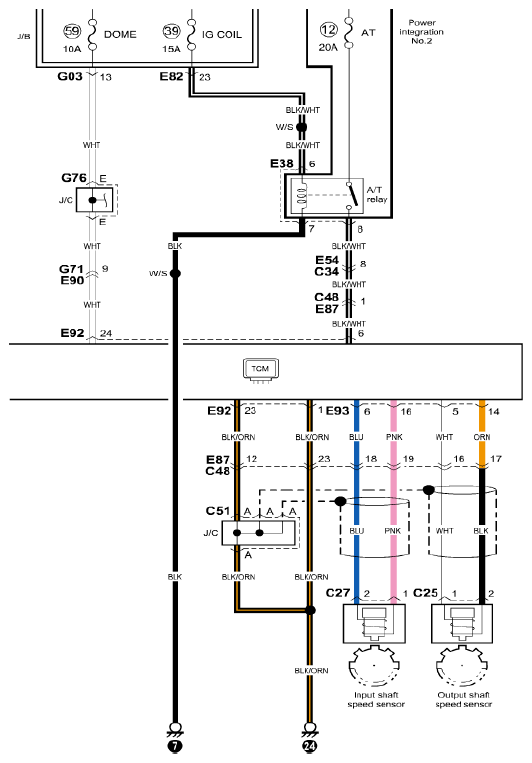

Fig 3: A-6 A/T Control System - Circuit Diagram (3 Of 3)
G08899378Courtesy of SUZUKI OF AMERICA CORP.
