Electronic Stability Program Wiring Circuit Diagram: Notes

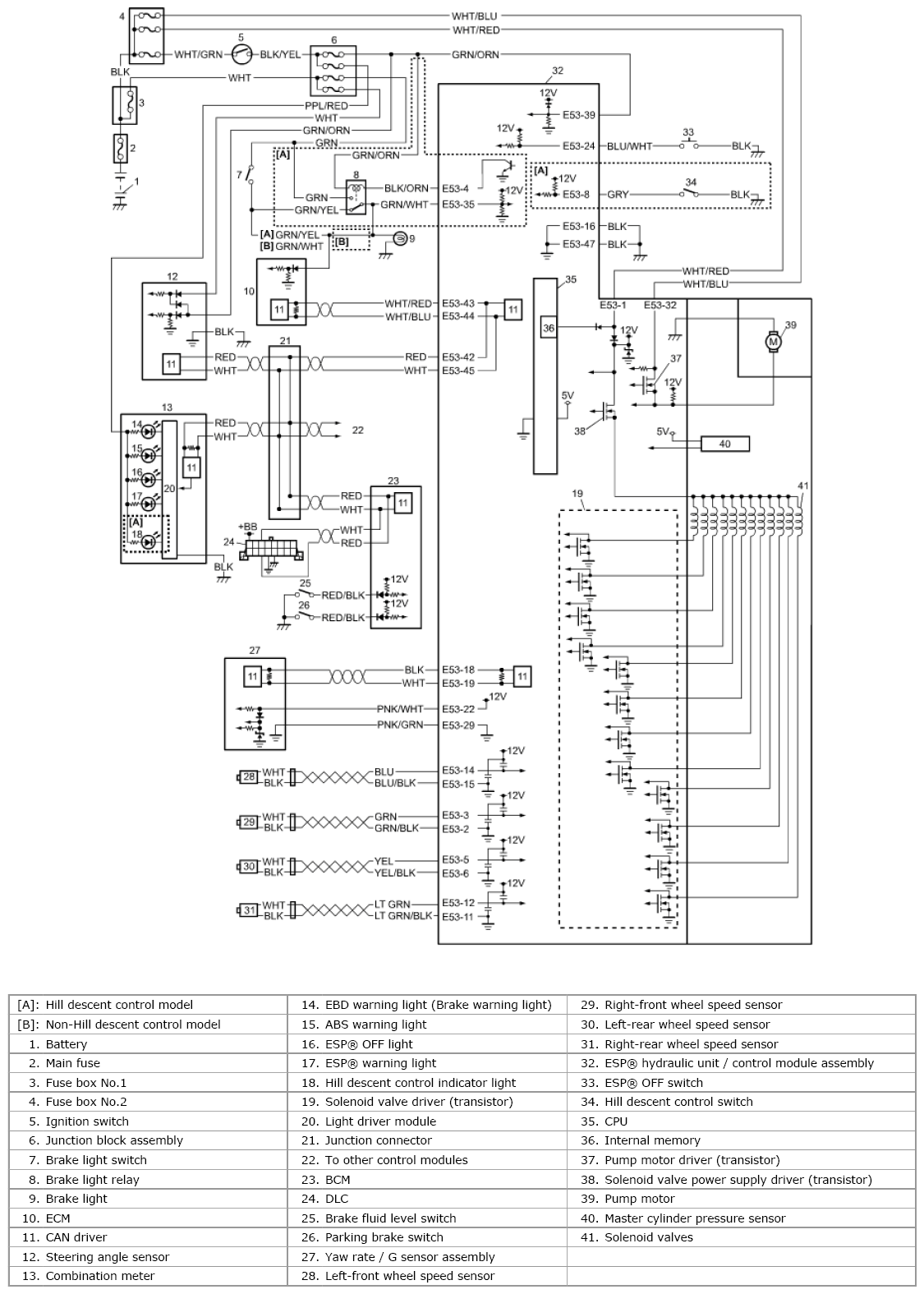

Fig 1: Electronic Stability Program - Circuit Diagram

G08895808

Courtesy of SUZUKI OF AMERICA CORP.
