Switch for other window than driver side

  1. Remove driver side door trim referring to step  1) to  3) of Front Door Glass Removal and Installation .
  2. Remove power window main switch from door trim.
  3. Check for continuity between terminals as shown below.

    If check result is not as specified, replace power window main switch.

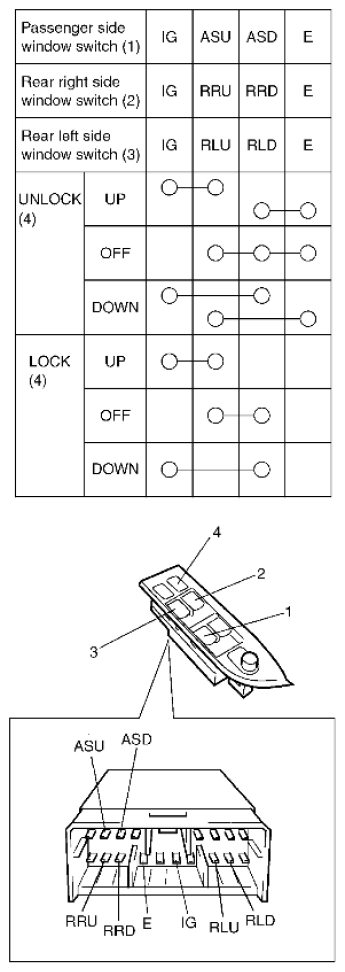

    Fig 1: Identifying Power Window Main Switch Terminals
    G08899609Courtesy of SUZUKI OF AMERICA CORP.
