Combination Switch Reading System: System Diagram

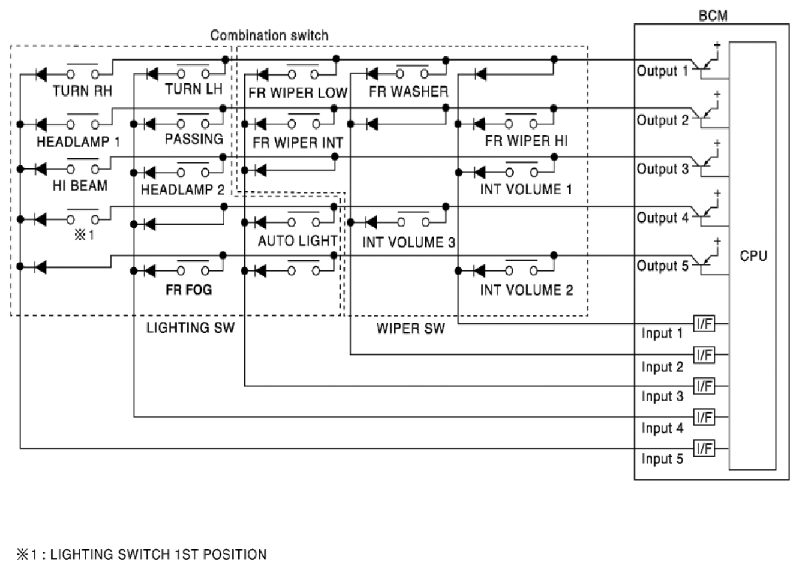

Fig 1: Combination Switch Reading System Diagram

G06443404

Courtesy of SUZUKI OF AMERICA CORP.
