Electronic Shift Control Input/Output Diagram

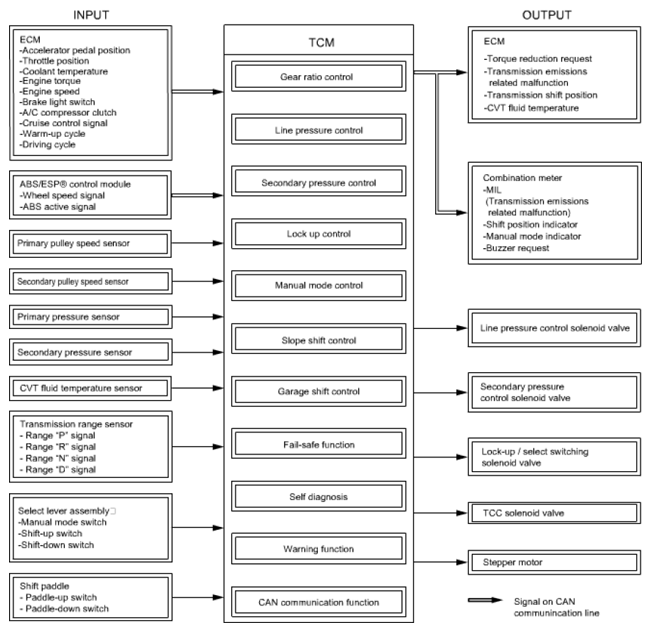

Fig 1: Electronic Shift Control Input/Output Diagram

G06866729

Courtesy of SUZUKI OF AMERICA CORP.
