Refrigeration System: Component

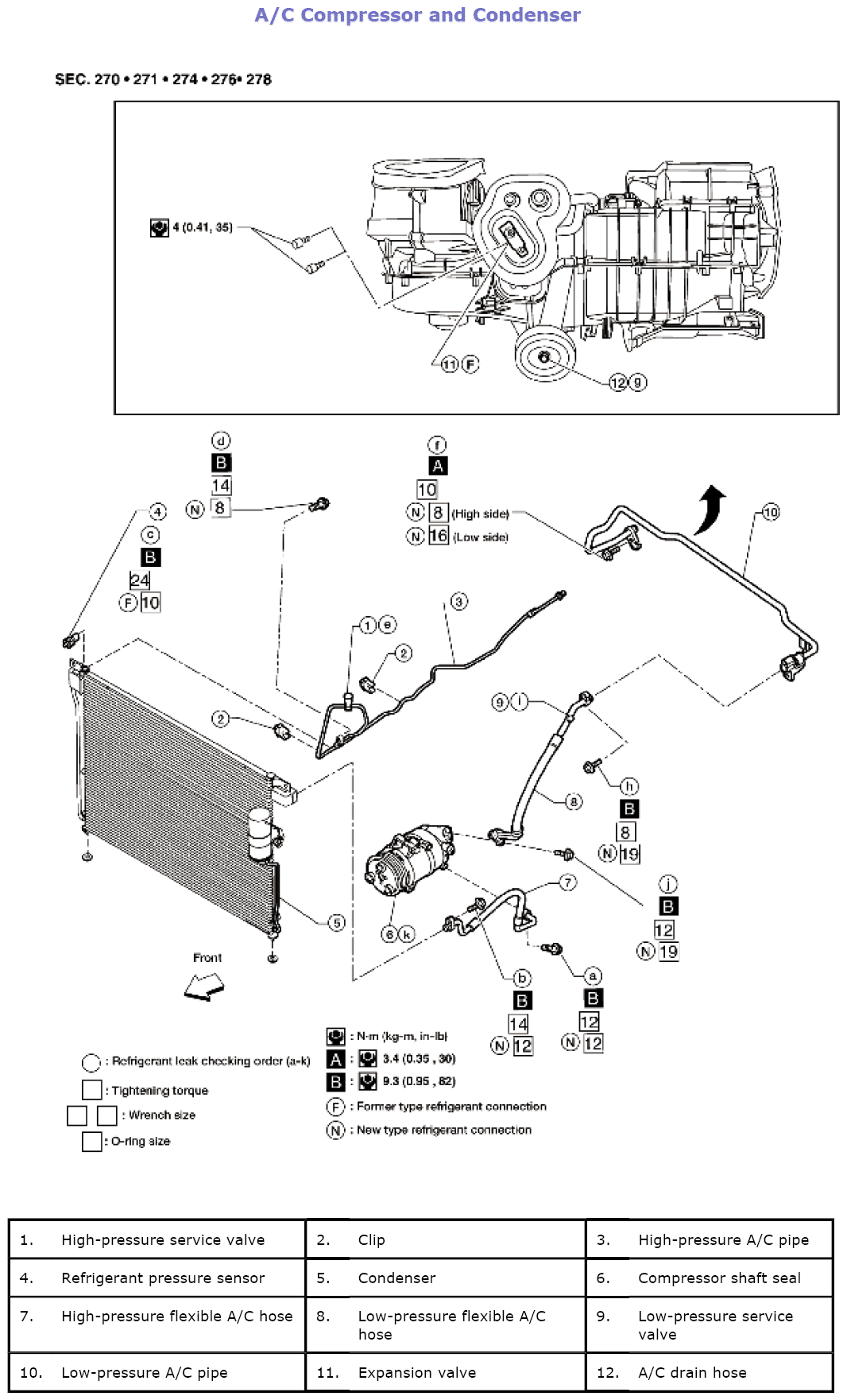

Fig 1: Exploded View Of A/C Compressor And Condenser

G06443258

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: Refer to [PRECAUTION FOR REFRIGERANT CONNECTION ].
