EVAP System Components

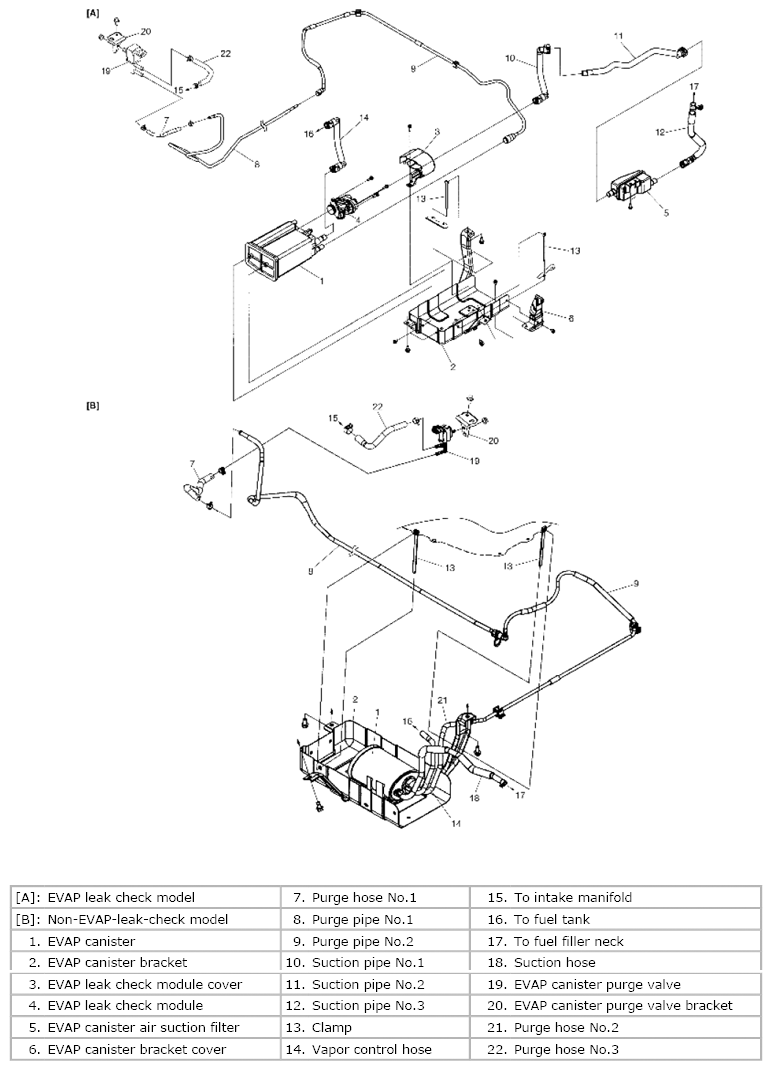

Fig 1: Identifying EVAP System Replacement Components

G06866885

Courtesy of SUZUKI OF AMERICA CORP.
