ABS Component Location

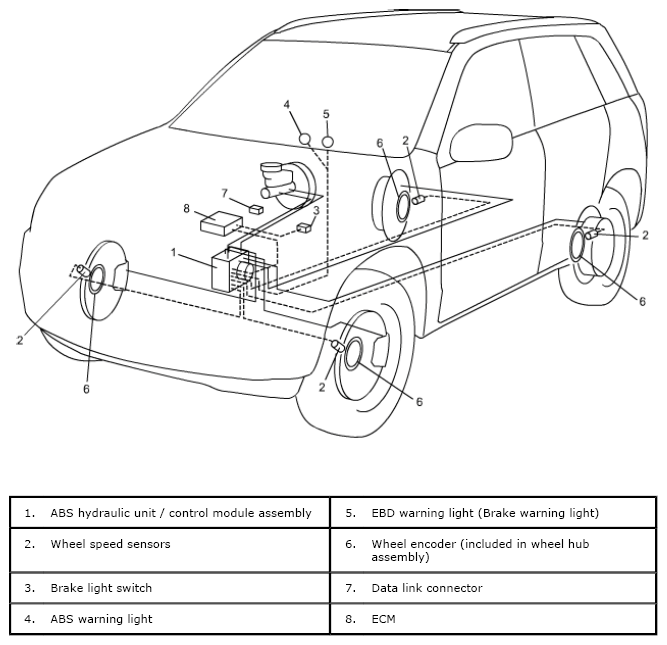

Fig 1: Identifying ABS Component Location
G06500007Courtesy of SUZUKI OF AMERICA CORP.
