Generic Scan Tool (GST) Function: Description

Generic Scan Tool (OBDII scan tool) complying with SAE J1978 has several functions explained below.

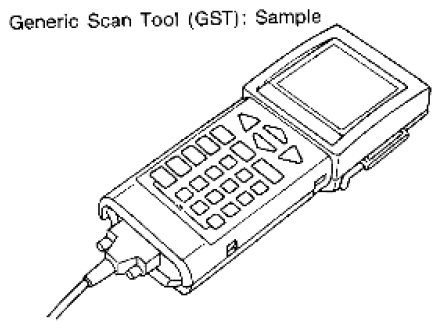

Fig 1: Identifying Generic Scan Tool
G06441202Courtesy of SUZUKI OF AMERICA CORP.

ISO15765-4 is used as the protocol.

The name GST or Generic Scan Tool is used in this service manual.
