Data Communication Schematics

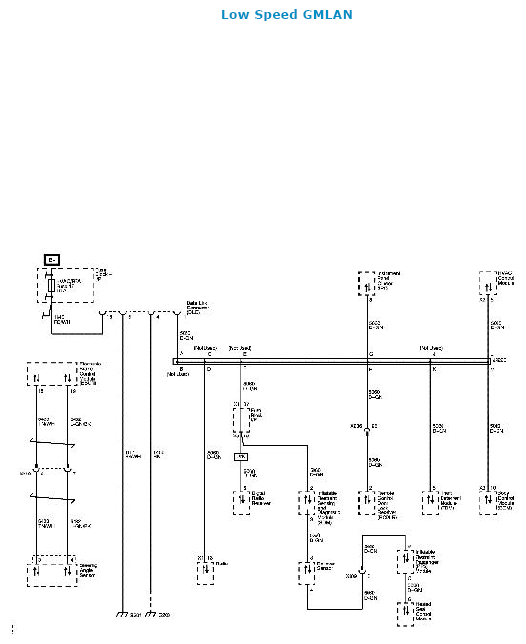

Fig 1: Data Communication Schematics Diagram - Low Speed GMLAN
G05471746Courtesy of SUZUKI OF AMERICA CORP.

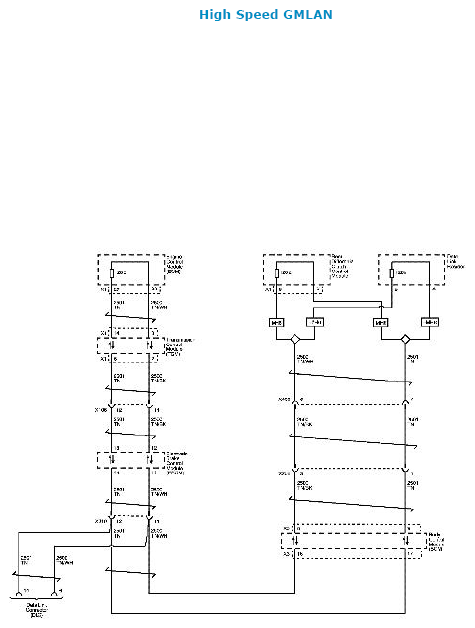

Fig 2: Data Communication Schematics Diagram - High Speed GMLAN
G05471747Courtesy of SUZUKI OF AMERICA CORP.
