Windshield Wiper System Module Replacement

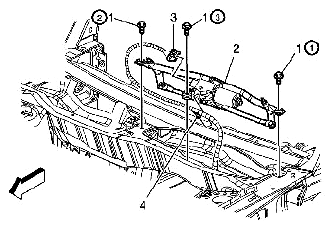

Fig 1: Identifying Windshield Washer Module Assembly

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
Preliminary Procedure  Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
1	Windshield Washer System Module Assembly Bolts (Qty: 3) CAUTION: Refer to FASTENER NOTICE . Tightening torque  Tighten the bolts in the mandatory sequence as shown to 12 N.m (9 lb ft)
2	Windshield Washer System Module Assembly Raise the module from the plenum and disconnect the electrical connector from the wiper motor. Re-connect the electrical connector prior to the installation of the wiper washer module back into the plenum.
3	Windshield Washer Module Assembly Harness
4	Windshield Washer Module Assembly Harness Rosebud Tip:  Ensure the rosebud is fastened to the plenum flange to ensure the harness is secure.
