Engine and Emission Control System Flow Diagram

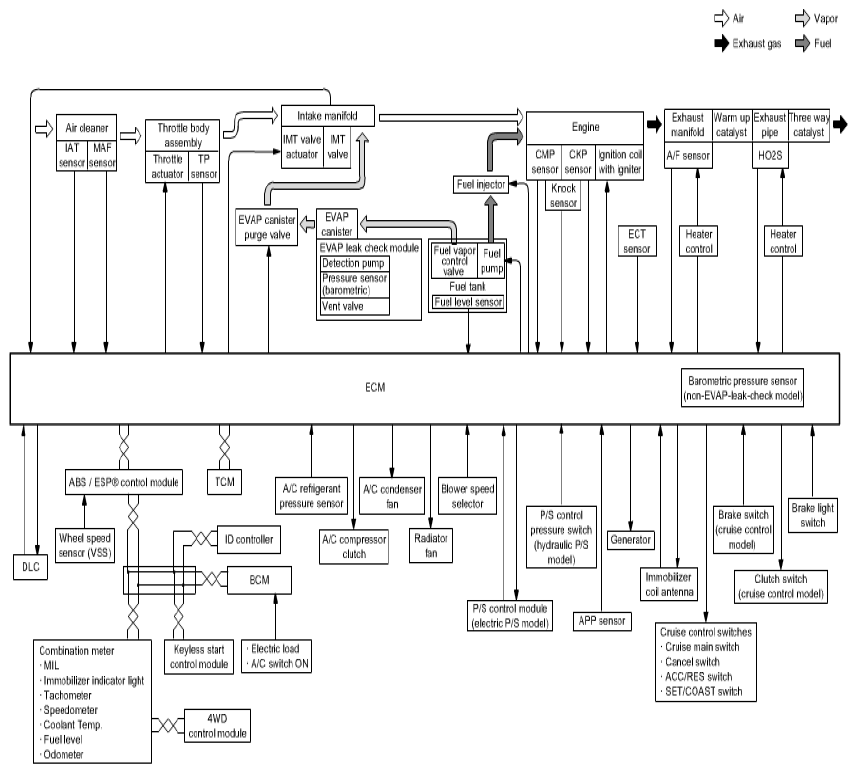

Fig 1: Engine And Emission Control System Flow Diagram

G05471863

Courtesy of SUZUKI OF AMERICA CORP.
