A/C System Circuits Check: Wiring Diagram

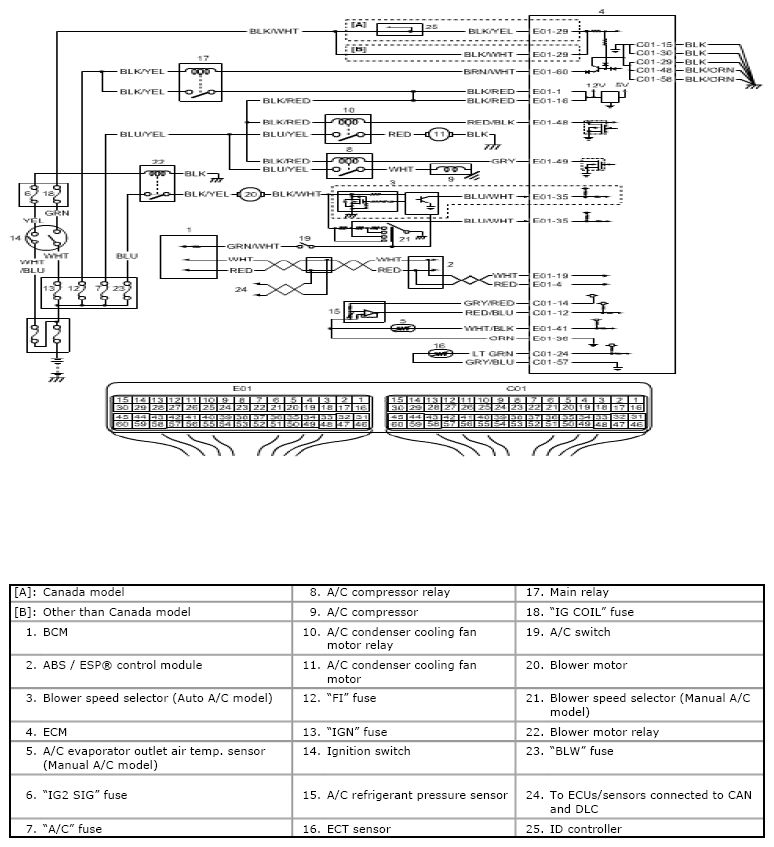

Fig 1: A/C System Circuit Diagram

G05471942

Courtesy of SUZUKI OF AMERICA CORP.
